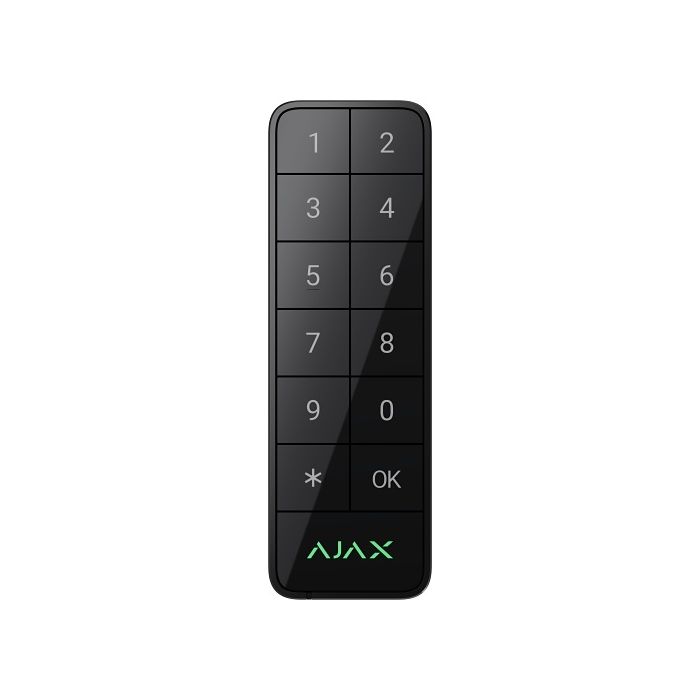

AJAFKEYPODBLK Superior KeyPad Outdoor Fibra Wired Outdoor Keypad - Black
AJAFKEYPODBLK is the black Superior KeyPad Outdoor Fibra, a wired keypad for indoor and outdoor Ajax installations. It supports DESFire Pass cards and Tag key fobs, smartphones via BLE and code-based authentication, giving users multiple authorised ways to manage security modes.
The keypad is built for exposed access points where clear operation and robust enclosure protection matter. Large mechanical buttons, IP66 protection, IK08 impact resistance, tamper protection and Fibra wired communication make it suitable for professional Superior line installations.
Key Features
- Enables outdoor or indoor keypad access without relying only on mobile app control.
- Supports contactless and code-based authentication for flexible user workflows.
- Keeps access control responsive with large mechanical buttons for gloved use.
- Helps protect exposed installations through IP66 and IK08 enclosure ratings.
- Streamlines commissioning through QR or line scanning and remote Ajax app configuration.
- Catalogue Family:
- POWER SUPPLY
- Colour:
- Black
- Product Line:
- Superior
- Authentication:
- Pass cards, Tag key fobs, smartphones via BLE and access codes
- Fibra Range:
- Up to 2,000 m with U/UTP cat.5 4 x 2 x 0.51 mm cable
- Power Supply:
- 7-30 V DC, up to 0.6 W
- Operating Temperature:
- -25degC to +60degC
- Operating Humidity:
- Up to 80%
- Protection Class:
- IP66
- Impact Protection:
- IK08
- Dimensions:
- 137 x 45 x 27 mm
- Weight:
- 160 g
- Compliance References:
- In progress: EN 50131 Grade 3, PD 6662:2017 up to 50 devices, SSF
- Product Type:
- Power Supply
