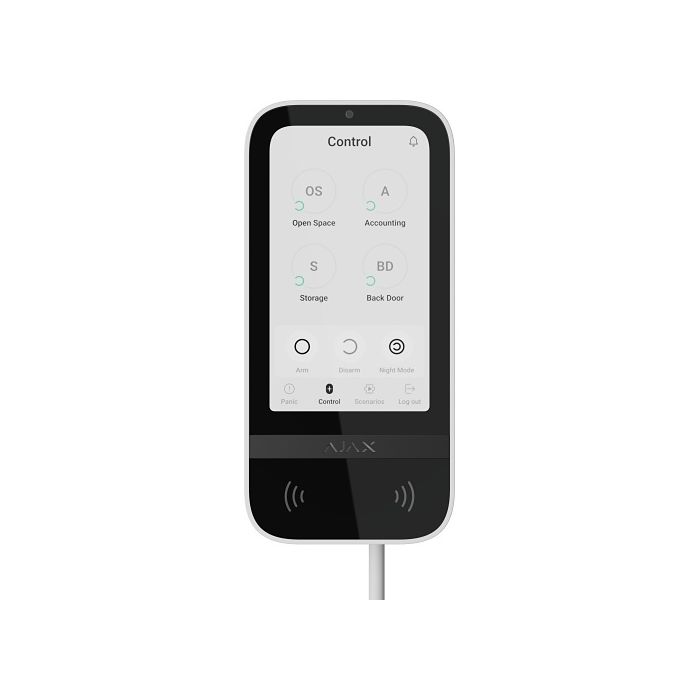

AJAFKEYPTSW Superior KeyPad TouchScreen Fibra Wired Touchscreen Keypad - White
AJAFKEYPTSW is the white Superior KeyPad TouchScreen Fibra, a wired Ajax keypad with a 5 inch IPS capacitive touch screen. It supports security control through Pass cards, Tag key fobs, smartphones and access codes, while the graphical interface shows system states, groups and malfunction causes.
The device is built for Superior Fibra installations that need intuitive user control at a fixed point. Sound and LED indication, emergency buttons, encrypted Fibra communication and remote configuration help installers provide a polished security and automation control point.
Key Features
- Gives users a graphical interface for security groups, automation controls and system status.
- Supports multiple authentication methods so sites can mix cards, tags, phones and codes.
- Clearly reports arming malfunctions on screen, helping users understand what needs attention.
- Provides emergency button access for alarm, fire and auxiliary alert events.
- Simplifies installation with SmartBracket mounting, automatic line scanning and remote testing.
- Catalogue Family:
- POWER SUPPLY
- Colour:
- White
- Display:
- 5 inch IPS capacitive touch screen
- Resolution:
- 480 x 854 px
- Authentication:
- Pass cards, Tag key fobs, smartphones via BLE and access codes
- Communication Range:
- Up to 2,000 m with U/UTP cat.5 4 x 2 x 0.51 mm cable
- Power Supply:
- Fibra line, 7-30 V DC, up to 54.6 mA
- Backup Batteries:
- 2 x LTO AA battery, pre-installed
- Operating Temperature:
- -10 degC to +40 degC
- Operating Humidity:
- Up to 75%
- Dimensions:
- 171 x 82 x 28 mm
- Weight:
- 327 g
- Compliance References:
- EN 50131 Grade 3 and PD 6662:2017
- Product Type:
- Power Supply
