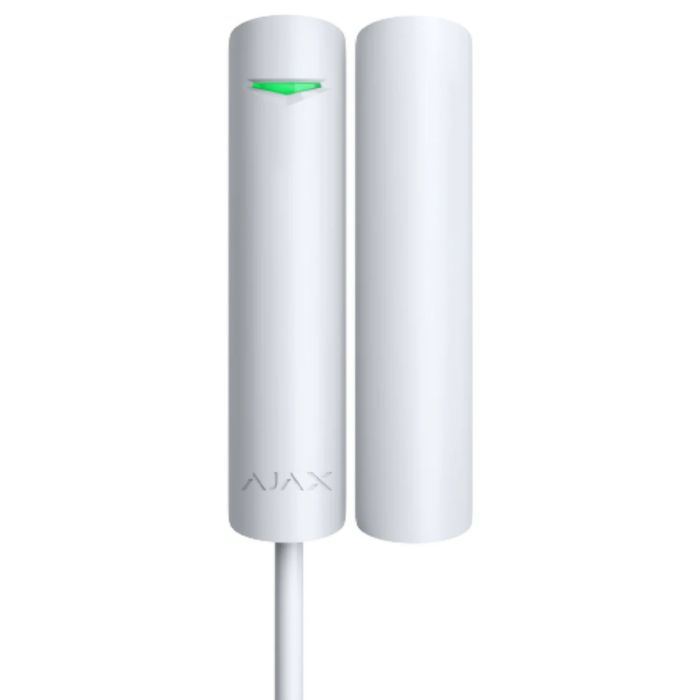

Ajax 30854 DoorProtect Plus Fibra Wired Opening Shock and Tilt Detector - White
The white Ajax 30854 DoorProtect Plus Fibra is an indoor wired detector for detecting opening, impact, vibration and tilt. Its magnetic opening detection is suitable for doors and windows, while the built-in accelerometer detects shock and vertical deflection greater than 5 Degrees, including changes to windows in ventilation mode.
Powered at 24 V through a four-core bus connection, it communicates with compatible Hub Hybrid 2G and Hub Hybrid 4G control panels using the Fibra protocol. Wired communication supports distances up to 2,000 m over specified U/UTP Cat 5 cable, with alarms transmitted to the hub within 0.15 seconds.
Key Features
- Two integrated reed switches for left- or right-side magnet placement
- Input for a third-party normally closed detector
- Floating-key block encryption and device authentication for communication protection
- Tamper monitoring for detecting enclosure opening or removal from the mounting surface
- Configurable door-opening chimes through connected Ajax sirens
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- White
- Use:
- Indoor use
- Communication Technology:
- Fibra protocol
- Compatible Hubs:
- Hub Hybrid (2G), Hub Hybrid (4G)
- Wired Connection Range:
- Up to 2,000 m when connected via twisted pair U/UTP cat.5
- Alarm Types:
- Opening, shock and tilt
- Opening Detection:
- Reed switch with small or large magnet
- Small Magnet Action Distance:
- Up to 1 cm
- Large Magnet Action Distance:
- Up to 2 cm
- External Detector Input:
- Normally closed wired detector input
- Alarm Signal Transmission:
- Within 0.15 seconds when triggered in armed mode
