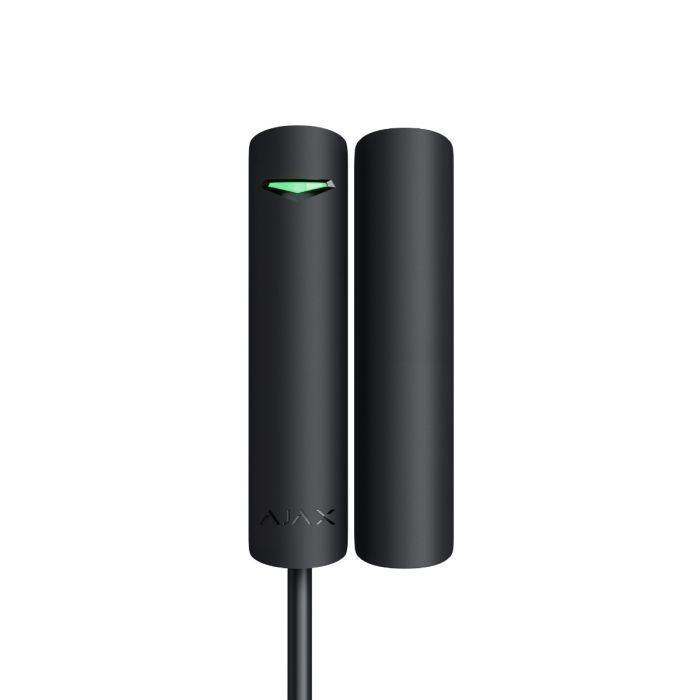

AJAFDRPPB Door Protect Plus Fibra Wired Opening Shock and Tilt Detector - Black
The AJAFDRPPB Door Protect Plus Fibra is a black wired bus detector for opening, shock and tilt events in Ajax Fibra systems. Its an indoor use, Fibra protocol communication, Hub Hybrid compatibility and support for an external normally closed wired detector.
It is intended for professional Ajax projects where monitored doors or windows need wired signalling back to the hub. The detector can report opening, impact and tilt alarms, while the Fibra bus connection and Ajax app setup keep installation and event management centralised.
Key Features
- Covers three entry-point event types without requiring separate Ajax detectors.
- Fibra wired communication supports project layouts that need long bus runs.
- External NC detector support gives installers more flexibility at the protected point.
- Small and large magnet options help adapt the installation to the frame geometry.
- Ajax app configuration keeps detector setup and ongoing checks manageable.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- Black
- Use:
- Indoor use
- Communication Technology:
- Fibra protocol
- Compatible Hubs:
- Hub Hybrid (2G), Hub Hybrid (4G)
- Wired Connection Range:
- Up to 2,000 m when connected via twisted pair U/UTP cat.5
- Alarm Types:
- Opening, shock and tilt
- Opening Detection:
- Reed switch with small or large magnet
- Small Magnet Action Distance:
- Up to 1 cm
- Large Magnet Action Distance:
- Up to 2 cm
- External Detector Input:
- Normally closed wired detector input
- Alarm Signal Transmission:
- Within 0.15 seconds when triggered in armed mode
