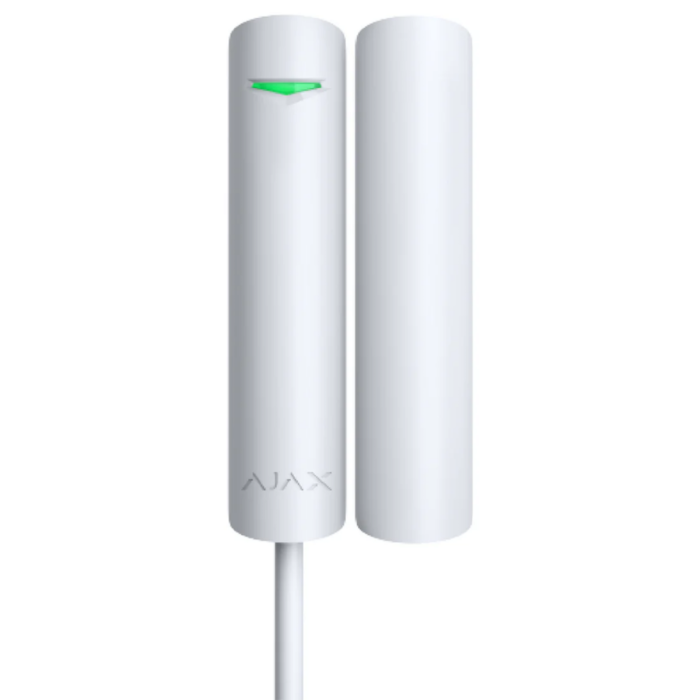

Ajax 61340 DoorProtect G3 Fibra Wired Opening Shock and Tilt Detector - White
The white Ajax 61340 DoorProtect G3 Fibra is a wired Grade 3 opening detector with two reed switches, an accelerometer and a magnetometer. It detects opening, impact, vibration and tilt changes, with three shock-sensitivity levels and an adjustable tilt threshold from 5 Deg to 25 Deg.
Designed for Ajax Fibra systems, it connects to compatible Hub Hybrid control panels using encrypted two-way wired communication over distances up to 2,000 m on the specified U/UTP cable. It operates from the Fibra line at 24 V DC with power consumption up to 35 mW. Compliance information includes EN 50131 Grade 3 and PD 6662:2017.
Key Features
- Magnet-spoofing detection and device authentication for protection against substitution attempts
- Two integrated tamper switches for detecting enclosure interference and device removal
- Input for a third-party normally closed detector
- Chime function with Ajax sirens for audible door-opening indication
- Automatic line scanning, QR pairing and remote configuration through Ajax apps
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- White
- Sensitive Elements:
- 2 reed switches, 1 accelerometer, and 1 magnetometer
- Shock Sensor Sensitivity:
- 3 levels adjustable in Ajax apps
- Tilt Activation Threshold:
- 5° to 25°
- Communication Technology:
- Fibra
- Communication Range:
- Up to 2,000 m with U/UTP Cat. 5 4x2x0.51 cable
- Compatible Hubs:
- Hub Hybrid (2G), Hub Hybrid (4G)
- Compliance:
- EN 50131 Grade 3, PD 6662:2017
- Power Supply:
- 24 V DC, up to 35 mW from the Fibra line
- Operating Temperature:
- -10°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 19.2 x 21 x 102 mm
- Weight:
- 62 g
