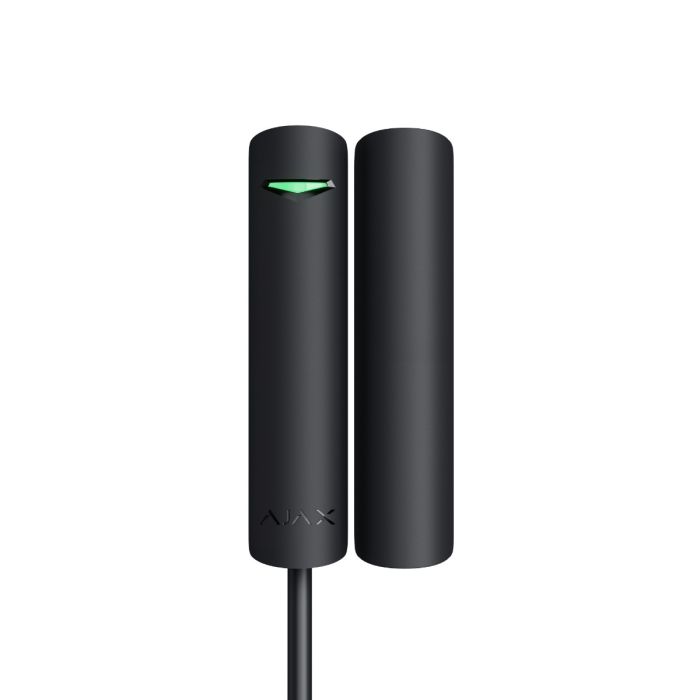

AJAFDRPG3B Door Protect G3 Fibra Wired Opening Shock and Tilt Detector - Black
The AJAFDRPG3B Door Protect G3 Fibra is a black wired opening detector with shock and tilt sensors for Ajax Fibra projects. Its a two reed switches, an accelerometer, a magnetometer, two tampers and Fibra wired communication with Hub Hybrid panels.
It suits professional wired Ajax installations where doors or windows need monitored opening, impact and tilt events with encrypted bus communication. Magnet spoofing detection, app configuration and up to 2,000 m wired communication help the device support larger project layouts.
Key Features
- Combines multiple sensing methods for stronger door and window event awareness.
- Fibra bus communication supports long wired runs for larger security projects.
- Magnet spoofing detection adds protection against a common contact-bypass attempt.
- Two tampers help report both detachment and enclosure interference.
- App-based setup keeps sensitivity and threshold adjustment accessible after installation.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- Black
- Sensitive Elements:
- 2 reed switches, 1 accelerometer and 1 magnetometer
- Shock Sensor Sensitivity:
- 3 levels adjustable in Ajax apps
- Tilt Activation Threshold:
- 5 degree to 25 degree
- Communication Technology:
- Fibra
- Communication Range:
- Up to 2,000 m with U/UTP cat.5 4x2x0.51 cable
- Compatible Hubs:
- Hub Hybrid (2G), Hub Hybrid (4G)
- Compliance References:
- EN 50131 Grade 3, PD 6662:2017
- Main Power Supply:
- 24 V DC, up to 35 mW from the Fibra line
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 19.2 x 21 x 102 mm
- Weight:
- 62 g
