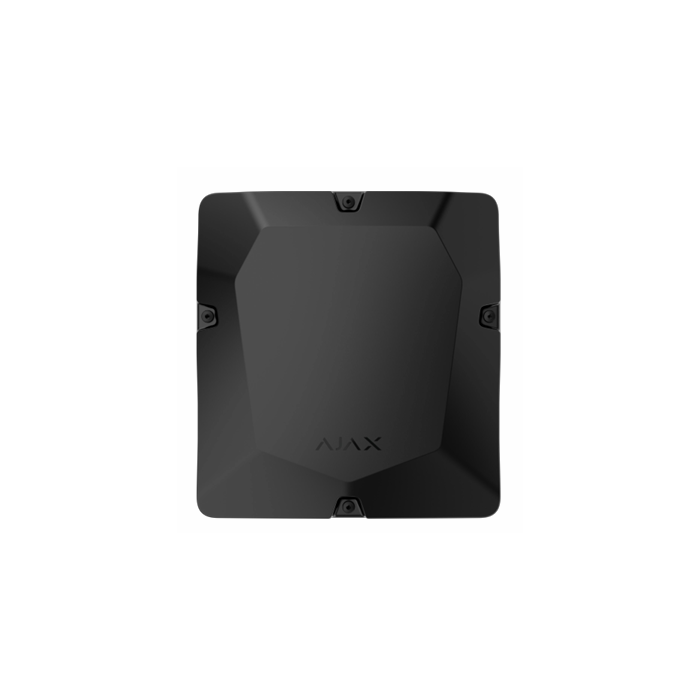

AJAFCASEDB Ajax Case D 430 Fibra Casing for Modules and Batteries - Black
The AJAFCASEDB is a black Ajax Case D (430) casing for larger Fibra installations, with capacity for up to eight compatible Ajax modules and 7-18 Ah batteries. Compatibility with multiple Superior Fibra modules, Hub Hybrid and MultiTransmitter variants, LineSupply modules and battery configurations.
It is designed for complex wired Ajax layouts where cable routing, tamper protection and modular service access matter. The flexible holder system, pre-installed tamper board, angled mounting holes, spirit level, perforated zones and included hardware support organised installation and future reconfiguration.
Key Features
- Large modular format supports complex Ajax Fibra device configurations.
- Can house up to eight compatible devices with battery space for larger wired systems.
- Included tamper board and mounting hardware support a complete installation package.
- Cable routing zones and module holders help organise serviceable wired layouts.
- Flexible casing layout supports expansion and later reconfiguration planning.
- Catalogue Family:
- ENCLOSURES
- Product Type:
- Enclosures
- Device Capacity:
- Up to eight compatible devices
- Battery Compatibility:
- 7-18 Ah batteries, not included
- Compatible Devices:
- Superior Hub Hybrid (4G); Superior MultiTransmitter Fibra; Superior LineSplit Fibra; Superior LineProtect Fibra; Superior MultiRelay Fibra; Superior MultiTransmitter IO (4x4) Fibra; Superior LineSupply (45 W) Fibra; Superior LineSupply (75 W) Fibra
- Compliance References:
- EN 50131 Grade 3, EN 60670-1, INCERT
- Dimensions:
- 430 x 400 x 133 mm
- Weight:
- 3,343 g
- Operating Temperature:
- -10 degC to +40 degC
- Operating Humidity:
- Up to 75%
- Complete Set:
- Case D (430), tamper board, battery holding stripe, 4 x Module Holder type A, installation kit, quick start guide
- Colour:
- Black
