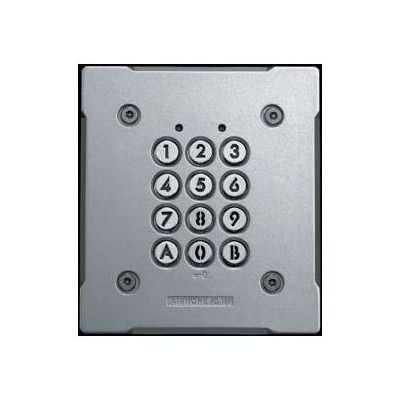

AC-10S Aiphone AC Series Surface Mount Access Control Keypad
The AC-10S is an Aiphone AC Series surface mount access control keypad with a vandal-resistant zinc die-cast panel. It provides standalone code-based access control with up to 100 user codes, two relay outputs and 12-24V AC/DC operation.
It suits door and gate entries where a surface keypad housing is preferred over a flush cut-out. IP54 weather resistance, keypad lockout, auto-relock and timer-linked one-push door release settings make it useful for controlled resident, staff or visitor access points.
Key Features
- Surface mount format simplifies keypad placement where flush mounting is not practical.
- Dual relay outputs allow one keypad to support separate lock or gate functions.
- Programmable code capacity suits multi-user residential and commercial access control.
- Lockout and auto-relock settings support tighter control of repeated entry attempts.
- Weather-resistant IP54 construction suits exposed entry hardware locations.
- Catalogue Family:
- KEYPADS & READERS
- Model:
- AC-10S
- Product Type:
- Keypads & Readers
- Panel:
- Vandal-resistant zinc die-cast panel
- Power Source:
- 12-24V AC or 12-24V DC
- Consumption:
- AC max. 100 mA; DC max. 70 mA
- Relay Outputs:
- 2
- Relay Contact:
- Dry contact, normally open or normally closed
- Contact Rating:
- 24V AC/DC, 3A resistive load or 1A inductive load
- Relay Operating Time:
- 1 to 99 seconds
- Access Codes:
- Up to 100 (relay 1 : 60, relay 2 : 40)
- Code Length:
- 4, 5 or 6 digits
- Wiring:
- Two conductors
- Environment:
- Weather resistant (IP54)
- Dimensions:
- 4-15/16 in H x 3-7/8 in W x 1-5/16 in D
