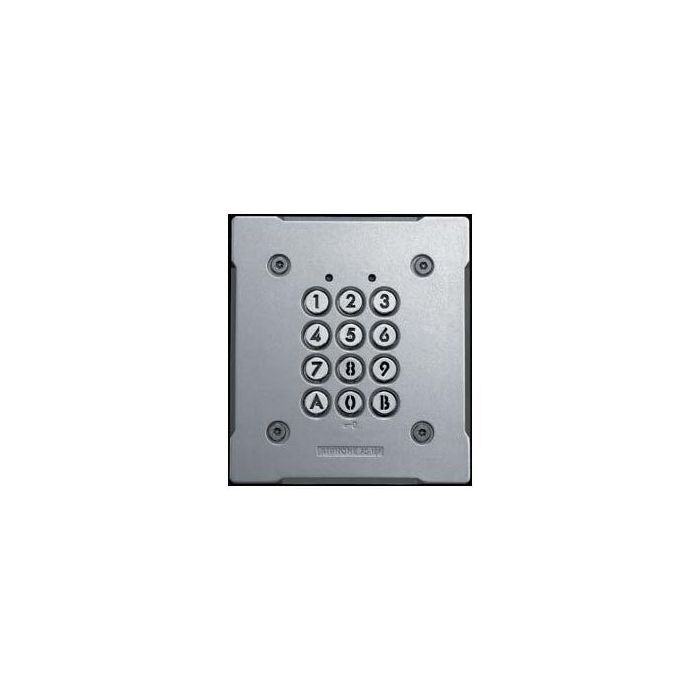

AC-10F Aiphone AC Series Flush Mount Access Control Keypad
The AC-10F is an Aiphone AC Series flush mount access control keypad with a vandal-resistant zinc die-cast panel. It provides standalone code-based access control with up to 100 user codes, two relay outputs and 12-24V AC/DC operation.
It suits building entrances where a flush keypad needs to control doors or gates without a separate reader platform. IP54 weather resistance, keypad lockout, auto-relock and timer-linked one-push door release settings support controlled entry in homes, apartments and commercial sites.
Key Features
- Flush keypad format integrates access control neatly into entry panels or wall cut-outs.
- Dual relay outputs let separate doors, gates or functions be controlled from one keypad.
- Programmable code groups support multi-user access without external reader hardware.
- Lockout and auto-relock settings help manage repeated entries and tailgating risk.
- IP54 weather-resistant design supports protected outdoor entry locations.
- Catalogue Family:
- KEYPADS & READERS
- Model:
- AC-10F
- Product Type:
- Keypads & Readers
- Panel:
- Vandal-resistant zinc die-cast panel
- Power Source:
- 12-24V AC or 12-24V DC
- Consumption:
- AC max. 100 mA; DC max. 70 mA
- Relay Outputs:
- 2
- Relay Contact:
- Dry contact, normally open or normally closed
- Contact Rating:
- 24V AC/DC, 3A resistive load or 1A inductive load
- Relay Operating Time:
- 1 to 99 seconds
- Access Codes:
- Up to 100 (#1 relay: 60, #2 relay: 40)
- Code Length:
- 4, 5 or 6 digits
- Wiring:
- Two conductors
- Environment:
- Weather resistant (IP54)
- Keypad Dimensions:
- 5-3/4 in H x 4-5/8 in W x 1-3/4 in D
- Back Box Dimensions:
- 3-15/16 in H x 3-3/8 in W x 1-3/4 in D
