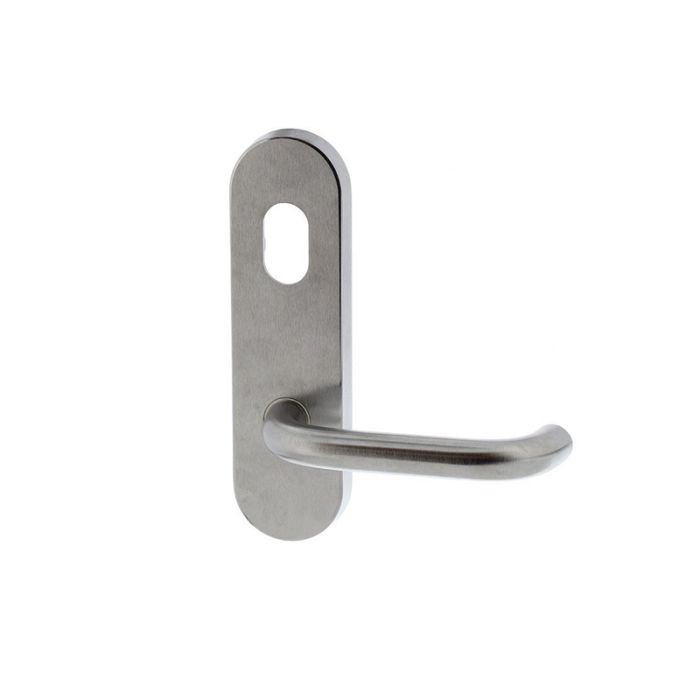

280170SC Lockwood 2801-70 External Plate with Cylinder Hole and Lever - Satin Chrome
The 280170SC is supported by an exact product sheet for the Lockwood 2801-70 external plate with cylinder hole and lever in satin chrome. Brass external plate with concealed fixing, oval cylinder cut-out and a non-handed design for Lockwood 3570 Series mortice locks.
Suitable for timber doors requiring a round-end external plate with cylinder access. Complies with AS1428.1, is fire tested, and suits 32 mm to 50 mm timber doors. Extended fixing screws are available separately.
Key Features
- External plate with lever and cylinder hole supports controlled mortice lock access
- Satin chrome brass construction provides a clean Lockwood furniture finish
- Non-handed design simplifies selection across left or right door layouts
- Concealed fixing supports a tidier installed appearance
- Confirmed fit with Lockwood 3570 Series mortice locks aids system matching
- Catalogue Family:
- LOCKING
- Product Type:
- Locking
- Dimensions:
- 166 mm x 48 mm x 12 mm
- Finish:
- Satin Chrome (SC)
- Material:
- Brass
- Suitable Door Type:
- Timber doors
- Door Thickness:
- 32 mm to 50 mm; max door thickness 45 mm listed in specification
- Cylinder Profile:
- Oval
- Spindle Size:
- 7.6 mm
- Finger Clearance:
- 36 mm
