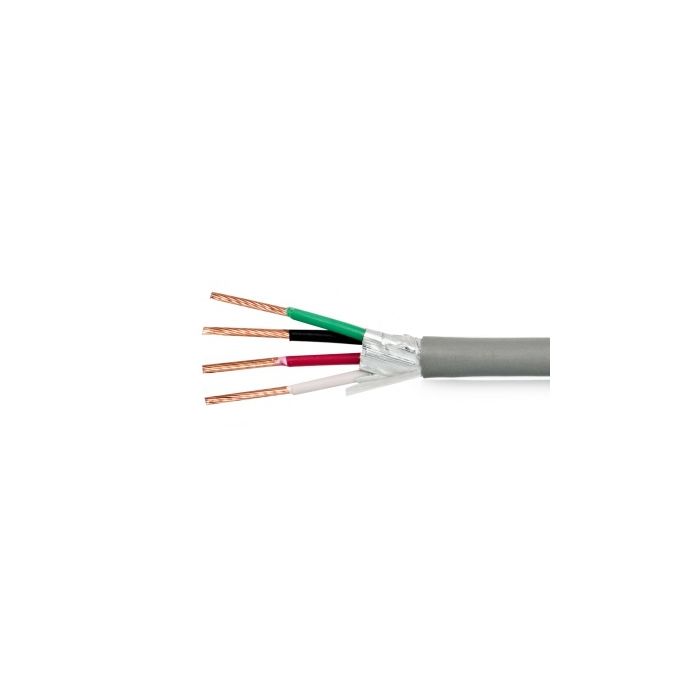

4-7-25-100-SHIELD 8723 Individually Screened Control Cable - 2 Pair 100m
2 pair individually screened Belden-style 8723 audio, control and instrument cable supplied in a 100 m length. Features 22 AWG stranded tinned copper conductors, polypropylene insulation, individually Beldfoil shielded pairs, a tinned copper drain wire, and a PVC jacket.
Suitable for low-voltage analogue signal, digital control, line-level audio, computer communication, and panel wiring applications. 100 m cable length with Belden 8723 cable construction.
Key Features
- 2 individually Beldfoil shielded twisted pairs.
- 22 AWG stranded tinned copper conductors.
- Tinned copper drain wire and foil shield construction.
- PVC jacket for indoor applications.
- 100 m cable length.
- Catalogue Family:
- CABLE
- Product Type:
- Cable
- Cable Type:
- 8723
- Pair Count:
- 2 pairs
- Conductor:
- 22 AWG stranded tinned copper, 7x30
- Insulation:
- Polypropylene
- Shielding:
- Individually Beldfoil shielded pairs, 100% coverage
- Drain Wire:
- 24 AWG stranded tinned copper
- Jacket:
- PVC
- Nominal Overall Diameter:
- 4.06 mm
- Ul Voltage Rating:
- 300 V CM
- Operating Temperature:
- -20°C to +75°C
- Length:
- 100 m
