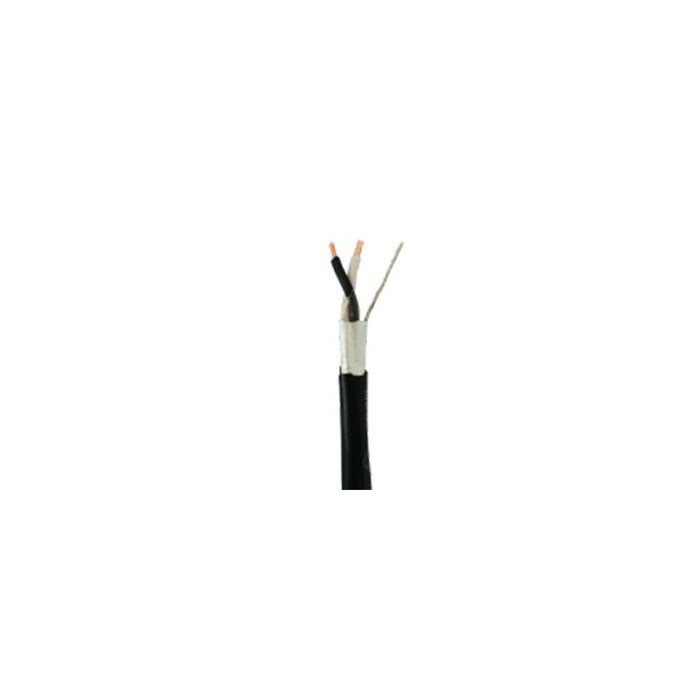

4-7-25-300-SHIELD Belden 8723 Style 2 Pair Individually Screened Control Cable
The Belden 8723 style cable is a 2-pair 22 AWG audio, control and instrument cable with stranded tinned copper conductors, polypropylene insulation, individually foil-shielded pairs and a PVC jacket. It is designed for low-voltage analogue signals, low-voltage digital control, line-level audio, computer communication and panel wiring.
Individually screened twisted pairs and drain wires support low-voltage control and signal wiring, while 100% Beldfoil shield coverage for each pair helps maintain signal integrity. The cable features CM compliance, is suitable for indoor environments and has a nominal overall diameter of 4.06 mm.
Key Features
- Individually shielded pairs support cleaner separation of low-voltage signal circuits.
- Tinned copper conductors and drain wires provide a defined construction for control wiring.
- Suitable for audio, control, computer communication and panel wiring applications.
- PVC jacket and compact diameter support practical equipment wiring routes.
- Electrical characteristics assist specification for analogue and digital control links.
- Catalogue Family:
- CABLE
- Cable Type:
- Audio, control and instrument cable
- Pairs:
- 2 twisted pairs
- Conductor:
- 22 AWG stranded 7x30 tinned copper
- Insulation:
- Polypropylene
- Inner Shield:
- Bi-laminate aluminium/polyester tape, 100% coverage per pair
- Drain Wire:
- 24 AWG stranded 7x32 tinned copper
- Jacket:
- PVC
- Nominal Overall Diameter:
- 4.06 mm
- Ul Voltage Rating:
- 300 V CM
- Operating Temperature:
- -20 deg C to +75 deg C
- Environmental Suitability:
- Indoor
- Flammability:
- UL 1685 FT4 Loading; IEC 60332-1-2
- Product Type:
- Cable
