GALC303901 Gallagher External HBUS Data and Power Cable - 300m Black Box

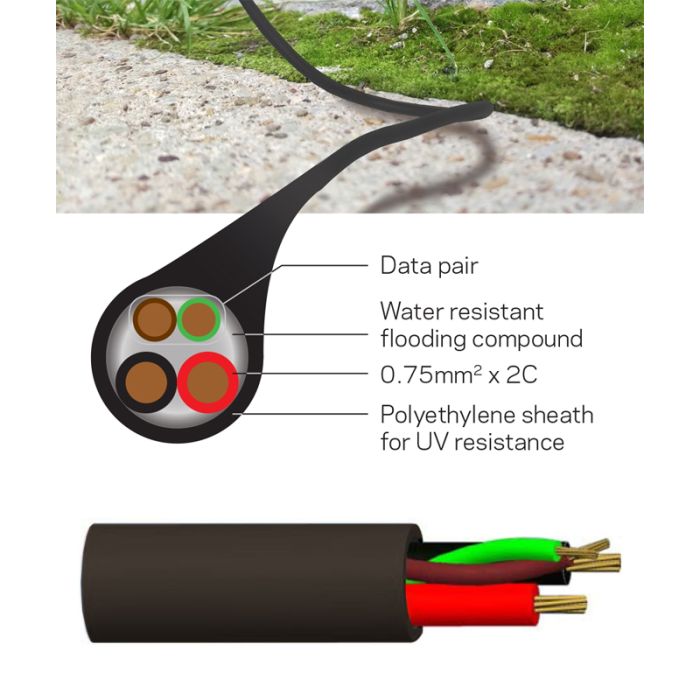

The GALC303901 is the Gallagher C303901 external HBUS data and power cable supplied in a 300m box. Black external HBUS cable with PE insulation, a PE sheath, and a water-resistant flooding compound.
Suitable for outdoor HBUS communication, data, and DC power supply applications. Features UV-resistant sheathing for external installations.
Key Features
- External HBUS construction supports outdoor Gallagher security system cabling
- Water-resistant flooding compound helps protect the cable in exposed conditions
- Black PE sheath supports UV-resistant outdoor cable routing
- Combined data and power conductors simplify HBUS device cable runs
- 300m box format supports efficient larger-site installation work
- Catalogue Family:
- CABLE
- Cable Type:
- External Gallagher HBUS Cable
- Length:
- 300m
- Colour:
- Black
- Sheath:
- Polyethylene (PE) sheath for UV resistance
- Flooding Compound:
- Water-resistant flooding compound
- Data Pair:
- Stranded plain annealed copper wire, single pair, PE insulation
- Power Conductor:
- 0.75 mm2 x 2C stranded plain annealed copper wire
- Power Conductor Construction:
- 24/0.2 mm, 18AWG
- Data Conductor Construction:
- 14/0.2 mm, 21AWG
- Operating Temperature:
- -40 deg C to 70 deg C
- Box Dimensions:
- 445 x 445 x 210 mm
- Box Weight:
- 15.5 kg
- Cable Filing:
- JEL FILLED
- Cores/Pairs:
- 2 PAIR
- Screen Type:
- UNSCREENED
- Size:
- 2x 14/0.20 & 2x 24/0.20
- Product Type:
- Cable
