GALC303900 Gallagher HBUS Data and Power Cable - 300m Orange Box

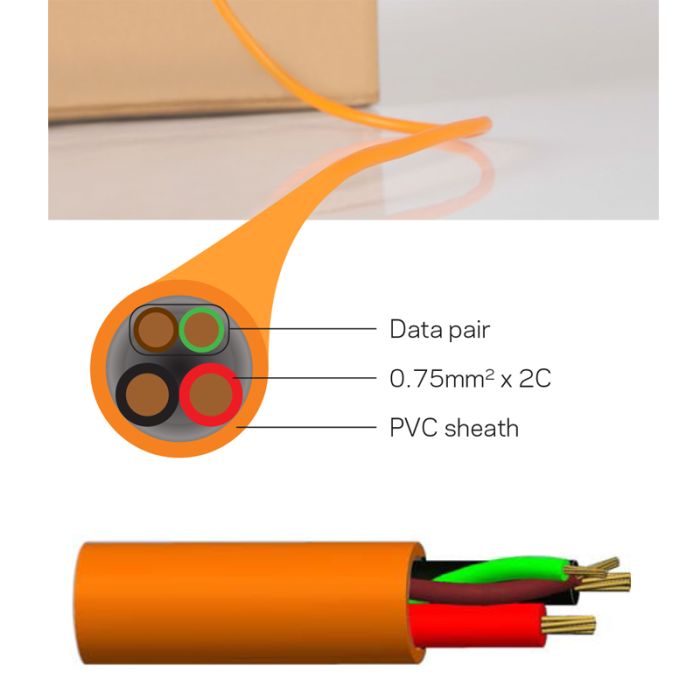

The GALC303900 is the Gallagher C303900 HBUS data and power cable supplied in a 300m easy-feed box. Indoor HBUS cable with one data pair and two 0.75 mm2 power conductors.
Suitable for Gallagher HBUS communication and DC power supply applications. Features colour-coded sheathing and metre markings for cable identification.
Key Features
- Designed for Gallagher HBUS communication and power cabling in security systems
- Combined data and power construction helps simplify HBUS device cable runs
- Metre markings support easier measuring and cable management during installation
- Easy-feed 300m box suits larger projects with repeated HBUS cabling runs
- Conductor colour matching supports faster recognition during termination
- Catalogue Family:
- CABLE
- Cable Type:
- Gallagher HBUS Cable
- Length:
- 300m
- Data Pair:
- Stranded plain annealed copper wire, single pair, PE insulation
- Power Conductor:
- 0.75 mm2 x 2C stranded plain annealed copper wire
- Power Conductor Construction:
- 24/0.2 mm, 18AWG
- Data Conductor Construction:
- 14/0.2 mm, 21AWG
- Nominal Characteristic Impedance:
- 100 ohm
- Maximum Conductor DC Resistance At 20 Deg C:
- 26 ohm/km
- Operating Temperature:
- -15 deg C to 90 deg C
- Outside Diameter:
- 6.4 mm
- Box Dimensions:
- 445 x 445 x 210 mm
- Box Weight:
- 15.5 kg
- Cores/Pairs:
- 2 PAIR
- Screen Type:
- UNSCREENED
- Sheath:
- PVC SHEATH
- Size:
- 2x 14/0.20 & 2x 24/0.20
- Product Type:
- Cable
