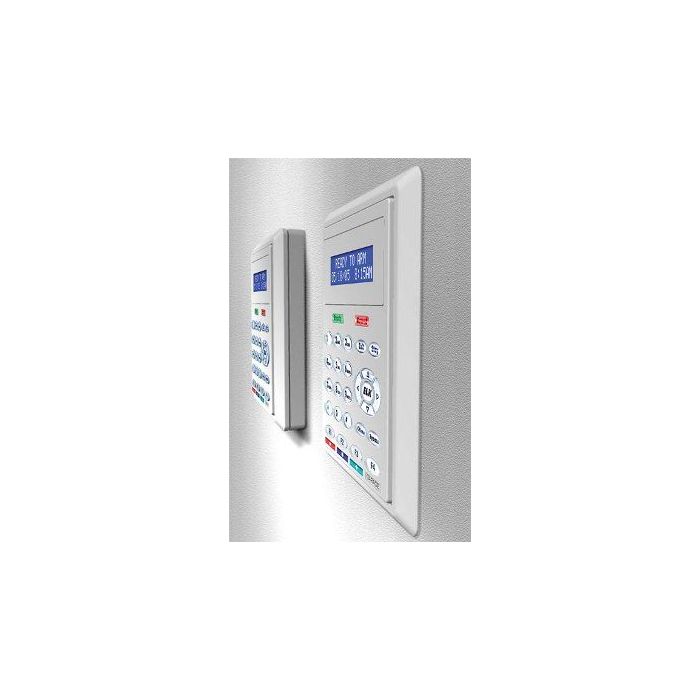

101-256 Ness M1KP2 Backlit LCD Keypad
The 101-256 is the Ness M1KP2 low-profile addressable LCD keypad for M1 cross platform controls. It has a 32-character blue/white backlit display, blue lighted keys, four programmable function keys, ELK / menu navigation keys and 4-wire RS485 data bus operation.
This keypad is suited to M1 installations requiring a clear local user interface with status display, function keys and optional external proximity-reader support. It also provides one supervised zone input, one programmable switched-positive voltage output and an optional flush-mount kit for this 101-256 version.
Key Features
- Backlit LCD and illuminated keys support clearer everyday system operation
- Programmable function keys give quick access to common site actions
- 4-wire RS485 data bus connection matches the M1 keypad architecture
- Optional external Wiegand reader support enables card or fob use where configured
- Surface or optional recess mounting helps suit different wall finishes
- Catalogue Family:
- READERS
- Model:
- Ness-M1KP2
- Display:
- 32-CHARACTER BLUE/WHITE BACKLIT LCD
- Function Keys:
- 4 programmable function keys
- Data Bus:
- 4-wire M1G/M1EZ8 RS485 data bus
- Operating Voltage:
- 13.8 VDC
- Current Draw:
- APPROX. 30 MA IDLE; APPROX. 85 MA FULLY ACTIVE
- Zone Input:
- 1 supervised zone
- Voltage Output:
- 1 programmable switched-positive output
- Size:
- 118W X 140H X 24D MM; 9.5 MM DEPTH RECESS MOUNT
- Product Type:
- READERS
