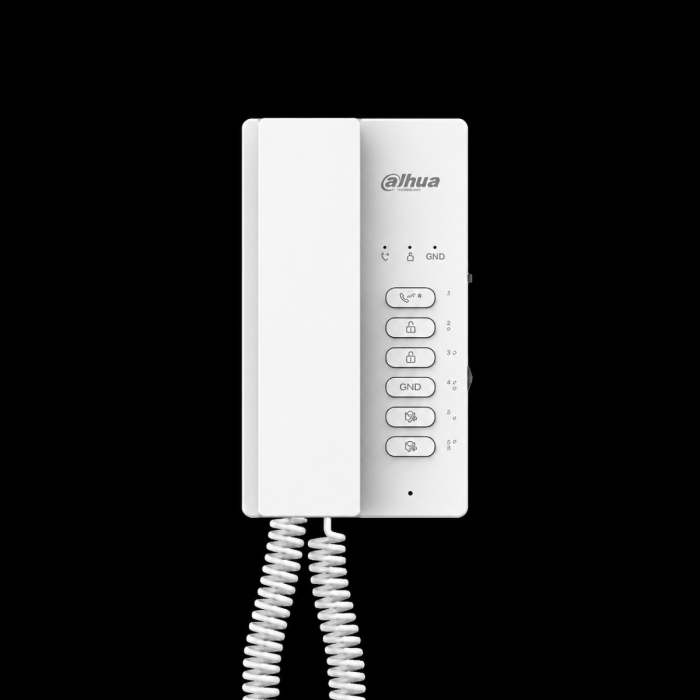

VTH0003A-H 2-Wire Analogue Audio Indoor Monitor with Handset - White
The VTH0003A-H is a Dahua 2-wire analogue audio indoor monitor with handset calling, mechanical buttons and half-duplex two-way audio. It supports braille, sleep mode, quick wake-up and one-click operation for call answering, door unlock, DND and mute.
Its white ABS housing and surface-mount format suit apartment and building intercom applications that need a simple handset-style voice station. The monitor is powered by the distributor, keeping the unit aligned with analogue 2-wire indoor installations.
Key Features
- Provides handset-based audio communication for familiar resident operation.
- Supports accessible use with braille-assisted controls.
- Keeps everyday call, unlock and mute functions available from the indoor point.
- Uses analogue 2-wire communication for straightforward system fit.
- Offers a clean surface-mounted white housing for indoor intercom locations.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTH0003A-H
- Product Type:
- Intercom
- Communication Mode:
- Analog 2-wire
- Audio Mode:
- Two-way audio, half-duplex
- Audio Input:
- 2 channels
- Audio Output:
- Built-in speaker; receiver speaker
- Material:
- Plastic
- Colour:
- White
- Power Supply:
- Provided by distributor
- Installation:
- Surface mount
- Dimensions:
- 91.5 x 160.0 x 43.3 mm
- Operating Temperature:
- -10 C to +55 C
- Power Consumption:
- Standby up to 1 W; working up to 5 W
