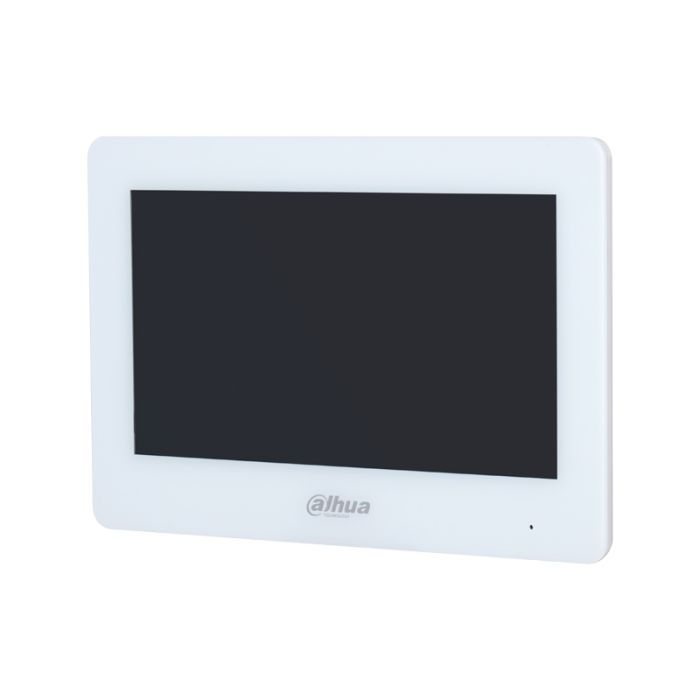

VTH5123H-W-S2 2-wire Wi-Fi Hybrid Indoor Monitor - 7 Inch
The VTH5123H-W-S2 is a 2-wire Wi-Fi hybrid indoor monitor with a 7 inch TFT capacitive touchscreen and 1024 x 600 resolution. It supports video intercom communication with VTO door stations and app communication, with built-in speaker output and two-way audio modes.
This white surface-mounted monitor is suited to residential intercom systems that need app call handling, alarm notifications and camera monitoring. It supports 6 alarm inputs, 1 alarm output, HDCVI or IP camera connection, snapshot and video recording functions when an SD card is used.
Key Features
- Combines 2-wire intercom operation with Wi-Fi support for flexible residential setups.
- Lets users handle calls and alarm notifications through the app where configured.
- Supports camera visibility by connecting to HDCVI cameras or IP cameras.
- Adds useful event capture with video recording and snapshots when SD storage is installed.
- Keeps installation neat with a white surface-mount indoor monitor format.
- Catalogue Family:
- INTERCOM
- Display:
- 7 inch TFT capacitive touchscreen
- Screen Resolution:
- 1024 x 600
- Wi-Fi:
- IEEE 802.11b/g/n; 2.4 GHz
- Storage:
- Micro SD card up to 64 GB
- Alarm Input:
- 6
- Alarm Output:
- 1
- Power Supply:
- 2-wire controller
- Installation:
- Surface mount
- Casing Material:
- PC + ABS
- Dimensions:
- 130 mm x 189 mm x 23.9 mm
- Operating Temperature:
- -10 °C to +55 °C
- Product Type:
- Intercom
