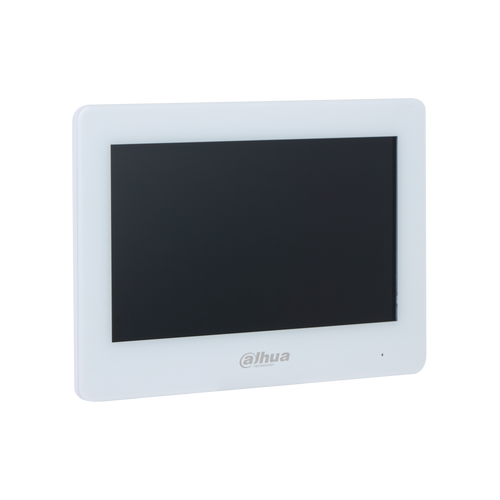

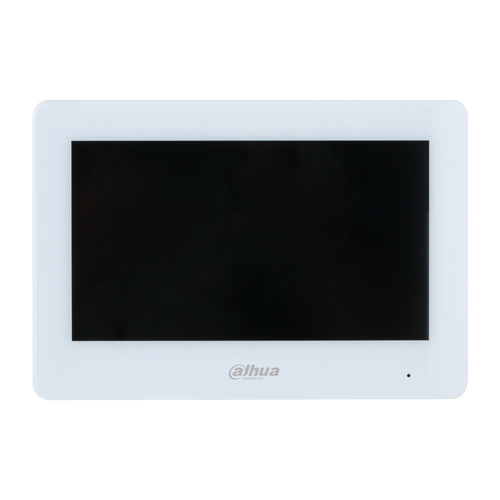

VTH5722BW-IWP 2-Wire IP and Wi-Fi Indoor Monitor with Hearing Loop - 7-inch White
The VTH5722BW-IWP is a Dahua indoor monitor with a 7-inch IPS capacitive touchscreen and 1024 × 600 resolution. It runs embedded Linux, supports two-way audio, and is compatible with hearing loop systems for assisted listening.
It suits indoor intercom installations where calling, door release and system control are required. It features a white surface-mount design, multi-colour indicators and microSD card support up to 512 GB.
Key Features
- Supports visitor communication and access control functions.
- Supports audio communication, calling and monitoring.
- Wall-mount design supports residential and apartment installations.
- Supports Do Not Disturb (DND) functionality.
- Compatible with supported Dahua residential intercom systems.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTH5722BW-IWP
- Product Type:
- INTERCOM
- Display:
- 7-INCH IPS CAPACITIVE TOUCHSCREEN
- Resolution:
- 1024 X 600
- Communication Mode:
- Full digital; digital 2-wire; IP; Wi-Fi; IP 2-wire
- Storage:
- micro SD card up to 512 GB
- Hearing Loop:
- Compatible with hearing loop systems
- Alarm Input:
- 8 channels
- Alarm Output:
- 1 channel
- Power Supply:
- 48 VDC 0.4 A; STANDARD POE
- Installation:
- Surface mount
- Colour:
- WHITE
- Dimensions:
- 210.2 x 103.1 x 18.6 mm
- Operating Temperature:
- -10 C TO +55 C
- Power Consumption:
- STANDBY UP TO 3.8 W; WORKING UP TO 10 W
