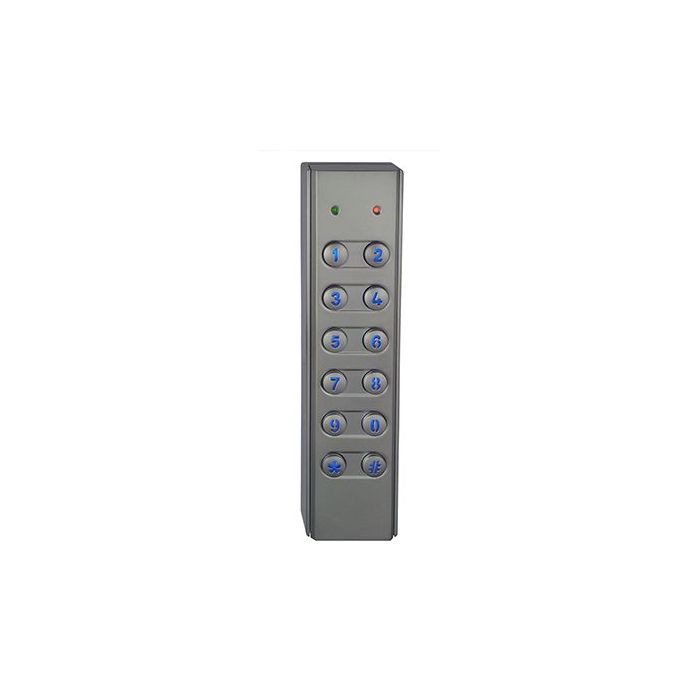

VST62 Nidac Vandal and Weather Resistant Stand Alone Mullion Keypad
The VST62 is a Nidac stand alone mullion keypad for access control applications. It features vandal and weather resistant construction, two SPDT relays, REX and auxiliary inputs, a tamper output, and adjustable blue key backlighting.
The keypad is designed for local access control installations and supports a slim mullion-style format, a wide operating voltage range, an IP67 ingress protection rating, and an operating temperature range of -20 to 70 degrees C.
Key Features
- Stand alone control reduces dependence on a separate access controller for basic keypad operation
- Weather resistant IP67 construction supports exposed access point placement
- Two relay outputs give installers flexibility for lock and auxiliary control
- REX auxiliary input and tamper output support practical door hardware integration
- Adjustable key backlighting assists use in low-light entry areas
- Catalogue Family:
- KEYPADS & READERS
- Product Type:
- Keypads & Readers
- Voltage Range:
- Recommended 10 to 27 V DC; absolute 7 to 30 V DC
- Current:
- 100 mA max. at 7 V DC; 75 mA max. at 12 V DC; 40 mA max. at 24 V DC
- Relays:
- 2 x SPDT, 2 A at 30 V DC
- Inputs:
- Dedicated REX input and auxiliary input
- Tamper Output:
- 100 mA maximum sink current open collector
- Ingress Protection:
- IP67
- Operating Temperature:
- -20 to 70 degrees C
- Weight:
- 615 g including cable
- Cable:
- 100 cm removable 12-conductor cable with rubber boot
