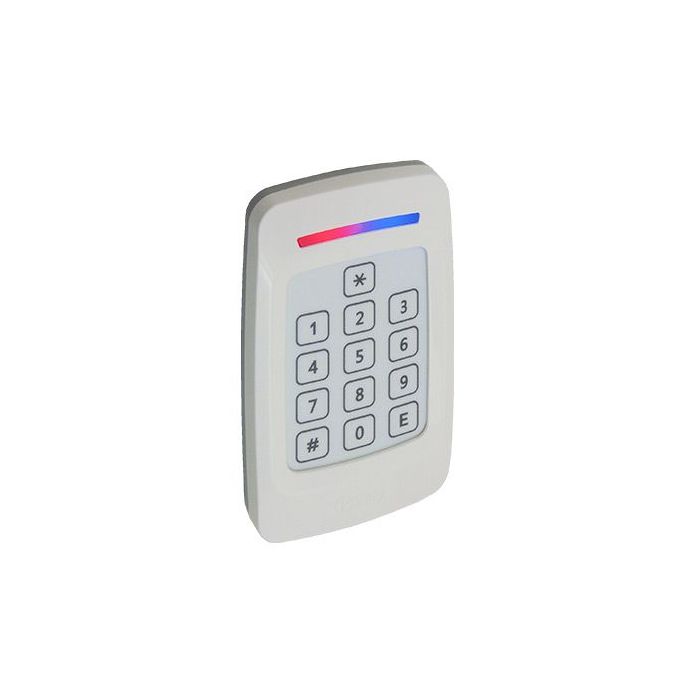

PSC2 Nidac PSC16 Indoor Combo Keypad and Proximity Reader
The PSC2 is a Nidac PSC16 indoor combo keypad and proximity card reader for Presco and Wiegand access control applications. It is a self-contained RFID contactless reader that interfaces with either a Wiegand input control panel or Nidac Presco PAC decoders.
The wall-plate style device combines a keypad and proximity reader in a single unit for indoor access control installations. It supports Presco and Wiegand output for compatibility with supported access control systems.
Key Features
- Combines keypad entry and proximity card reading in one indoor access control device
- Supports Presco and Wiegand output paths for flexible panel integration
- Auto-sensing output behaviour helps simplify commissioning on compatible systems
- Up to 20 cm read range supports convenient credential presentation at the door
- Compact 126 x 80 x 17.5 mm body suits standard internal access points
- Catalogue Family:
- READERS
- Product Type:
- Readers
- Supported Outputs:
- Presco and Wiegand format data
- Operating Voltage:
- 8 to 15 V DC
- Operating Current:
- 150 mA max.
- Operating Temperature:
- 0 to 50 degrees C
- Read Range:
- Up to 20 cm
- Excitation Frequency:
- 125 +/- 5 kHz
- Wiegand Output:
- 50 microsecond pulse width; 2 ms pulse separation
- Dimensions:
- 126 x 80 x 17.5 mm
- Weight:
- 145 g
