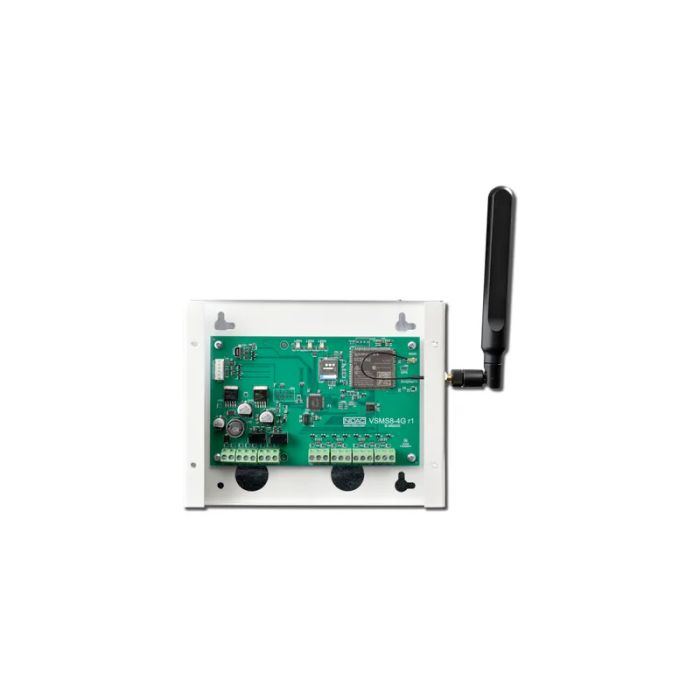

VSMS8-4G Nidac Forge 8 Channel 4G Voice and SMS Dialler
The VSMS8-4G is a Nidac Forge 4G autodialler for alarm and event notification applications. It provides 8-channel voice and SMS alarm reporting dialler with programmable inputs, two relay outputs and support for SMS and call notification.
The dialler operates from a 10 to 30 V DC supply and supports 4G mobile network communication for integration with compatible alarm panels and low-voltage equipment.
Key Features
- Eight configurable inputs support multi-point alarm and event reporting
- SMS and voice call functions help deliver alerts to assigned contacts
- Two relay outputs allow remote control or response actions from the dialler
- Status LEDs assist commissioning by showing power, SIM, signal and call progress
- Broad 4G frequency support suits Australian mobile network deployment
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Inputs:
- 8 input channels configurable as N/O or N/C and slave or latch
- Outputs:
- 2 x SPDT relays, 1 A at 30 V max.
- Power Supply:
- 10 to 30 V DC at 300 mA max.; 12 to 28 V DC recommended
- SIM Size:
- Micro SIM not supplied
- 4G Frequencies:
- B1, B2, B3, B4, B5, B7, B8 and B28
- Voice Messages:
- 8 recordable messages of 15 seconds each
- Sms Text:
- 8 programmable messages up to 90 characters each
- Dimensions:
- 186 x 152 x 35 mm case only
- Weight:
- 750 g
