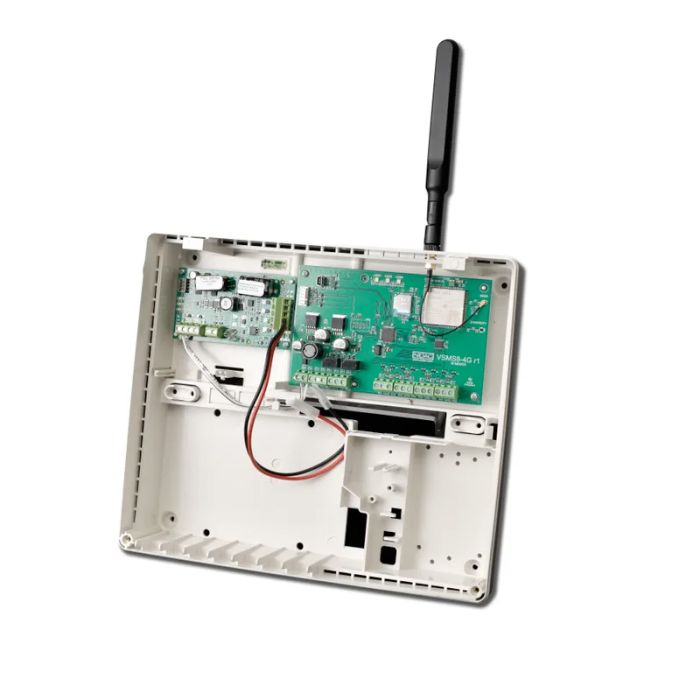

VSMS8-4G-PS Nidac Forge 8 Channel 4G Voice and SMS Dialler with Power Supply
The VSMS8-4G-PS is a Nidac Forge 4G autodialler with an integrated power supply for alarm and event notification applications. It provides 8-channel voice and SMS alarm reporting platform, with the PS version including a power supply suitable for 12 V SLA battery backup.
The dialler is supplied in an enclosure with integrated power support and is designed for use with compatible alarm panels and low-voltage monitoring and control equipment.
Key Features
- Power-supply version supports a more complete dialler installation package
- Eight programmable alarm inputs support multiple monitored events
- SMS and recorded voice message paths help alerts reach assigned contacts
- Two relay outputs provide a control path for supported remote actions
- Larger enclosure format suits installations requiring integrated power support
- Catalogue Family:
- BATTERY
- Product Type:
- Battery
- Inputs:
- 8 input channels configurable as N/O or N/C and slave or latch
- Outputs:
- 2 x SPDT relays, 1 A at 30 V max.
- Power Supply Note:
- PS includes power supply suitable for 12 V SLA battery backup
- SIM Size:
- Micro SIM not supplied
- 4G Frequencies:
- B1, B2, B3, B4, B5, B7, B8 and B28
- Dimensions:
- 296 x 254 x 89 mm box only
- Weight:
- 1650 g
