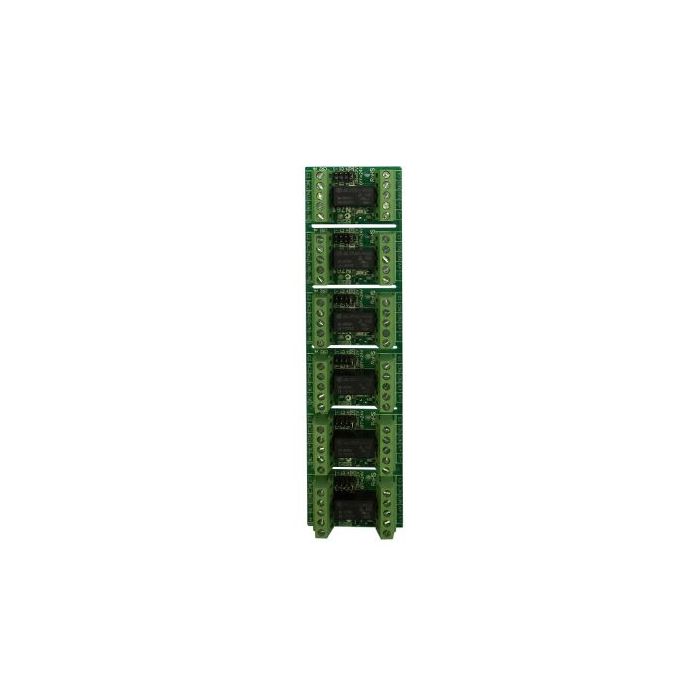

CR2-6 Nidac CR2 Six Relay DPDT Control Relay Strip
The CR2-6 is a Nidac CR2 six relay DPDT control relay strip with common supply rails. It supports 12 or 24 V DC operation, 2 A rated contacts, LED operation indication, and relay sections that can be separated for individual use.
The relay strip is designed for access control and low-voltage automation applications, including door strike control, dialler interfacing, strobe driving, voltage level shifting, and other multi-relay control functions. Common power terminals and jumper options support flexible relay contact configuration.
Key Features
- Six-relay strip format supports multi-output control work in one assembly
- DPDT contacts give installers flexible changeover switching options
- Common supply rails simplify wiring where multiple relays share power
- LED indication helps confirm relay operation during commissioning
- Snap-off construction allows sections to be separated for smaller installations
- Catalogue Family:
- ACCESSORIES & OTHERS
- Product Type:
- Accessories & Others
- Operating Voltage:
- 12 or 24 V DC
- Operating Voltage Ranges:
- 10 to 18 V DC with V Link on; 21 to 28 V DC with V Link off
- Maximum Switch Current:
- 2 A at 30 V DC
- Trigger Current:
- +TR 1.2 mA at 12 V and 2.4 mA at 24 V; -TR -1.2 mA at 12 V and -2.4 mA at 24 V
- Life Expectancy:
- 100000 operations at full load
- Dimensions:
- 50 x 186 x 15 mm
