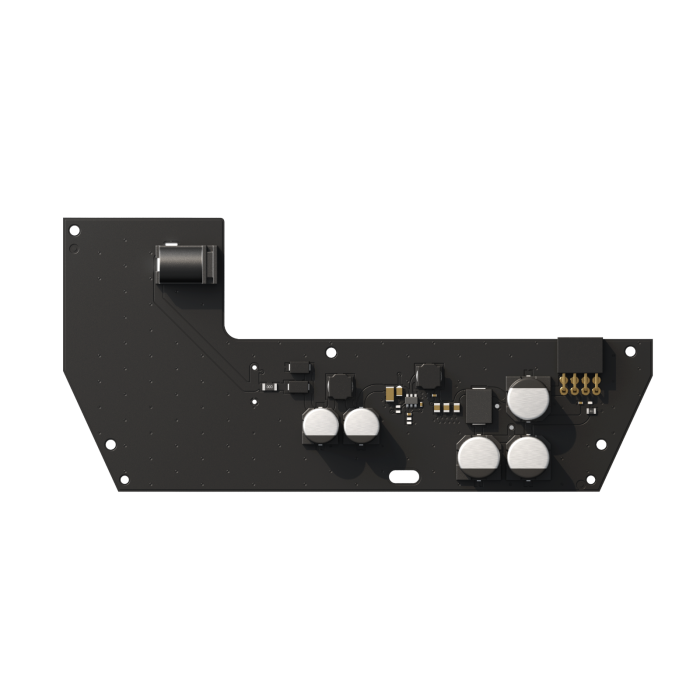

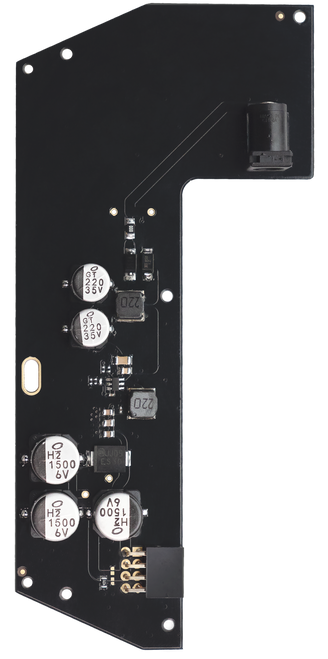

AJAHUB212-24V 12-24V PSU for Ajax Hub, Hub Plus and ReX
AJAHUB212-24V is a 12–24 V power supply unit for compatible Ajax control panels and range extenders. It replaces the standard 110/230 V AC power supply, allowing the device to operate from a low-voltage DC power source.
The power supply is installed inside the hub or range extender enclosure and is suitable for installations in premises, vehicles, trailers, or boats where a low-voltage power source is used. It includes a terminal adapter and a standard power jack connection for installation.
Key Features
- Converts compatible Ajax hubs and ReX range extenders for low-voltage DC operation.
- Suitable for installations powered by low-voltage DC sources.
- Supports use in premises, vehicles, trailers, and boats.
- Installs inside the device enclosure as a replacement for the standard power supply.
- Includes the terminal adapter required for installation.
- Catalogue Family:
- POWER SUPPLY
- Compatibility:
- Hub (2G) Jeweller, Hub (4G) Jeweller, Hub Plus Jeweller, and ReX
- Input Voltage:
- 8–32 V DC
- Input Current:
- Up to 1 A
- Output Voltage:
- 4.65 V DC ±5%
- Output Current:
- Up to 1.5 A
- Switch-On Voltage:
- 8 V DC ±2.5%
- Switch-Off Voltage:
- 7–7.5 V DC, depending on load
- Socket:
- 6.5 x 2 mm
- Plug:
- 5.5 x 2.1 mm power jack
- Installation Method:
- Inside the hub or range extender enclosure
- Operating Temperature:
- -10°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 138 x 64 x 13 mm
- Weight:
- 30 g
- Product Type:
- Power Supply
