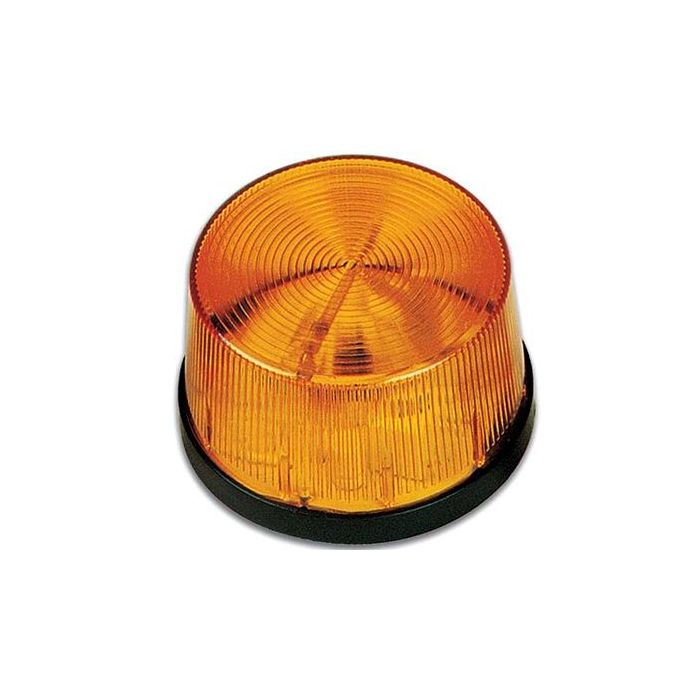

STROBEAMBER Amber Strobe Light - 12VDC and 24VDC
The STROBEAMBER is an amber strobe light for visual alarm signalling with dual-voltage operation. It operates from either 12 VDC or 24 VDC and provides strobe flash indication with a current draw of 120 mA at 12 VDC and 60 mA at 24 VDC.
The strobe light uses a three-wire connection with black for earth, yellow for 12 VDC, and red for 24 VDC. It is designed to provide a visual alarm indication for compatible security and alarm systems.
Key Features
- Amber strobe provides a visual alarm indication.
- Dual-voltage operation supports 12 VDC or 24 VDC power supplies.
- Three-wire connection with colour-coded wiring simplifies installation.
- Current draw of 120 mA at 12 VDC and 60 mA at 24 VDC.
- Designed for visual alarm signalling applications.
- Catalogue Family:
- ALARM / INTRUSION
- Model:
- STROBEAMBER
- Product Type:
- Alarm / Intrusion
- Operation:
- Strobe flash
- Voltage:
- 12VDC or 24VDC
- Current Draw:
- 120 mA at 12VDC; 60 mA at 24VDC
- Wiring:
- Black earth; yellow 12V; red 24V
