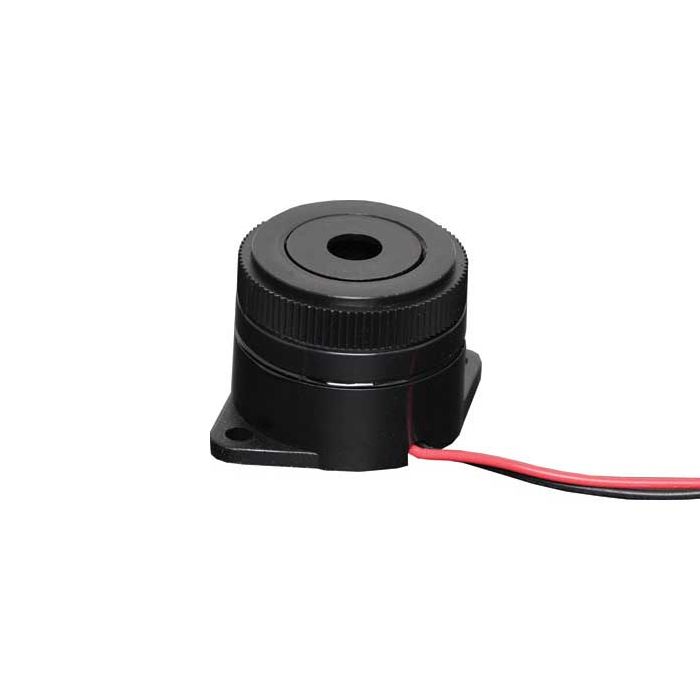

SONALERTCONTINUOUS Continuous Tone Piezo Chassis Mount Buzzer - 1.5 to 28VDC
The SONALERTCONTINUOUS is a continuous tone piezo chassis mount buzzer designed for low-voltage signalling applications. It operates from 1.5 to 28V DC and delivers a 95 dB sound output at a distance of 30 cm.
The buzzer features a chassis mount design with 100 mm leads and requires an 18 mm mounting hole for installation.
Key Features
- Continuous tone piezo buzzer
- 1.5 to 28V DC operating voltage
- 95 dB sound output at 30 cm
- 20 mA current consumption at 24V
- Chassis mount design
- 100 mm leads
- 18 mm mounting hole
- Catalogue Family:
- SCREAMERS & STROBES
- Product Type:
- Screamers & Strobes
- Model:
- S 6110 Continuous
- Supply Voltage:
- 1.5 to 28V DC
- Sound Output:
- 95 dB at 30 cm
- Current:
- 20 mA at 24V
- Frequency:
- 3500 Hz ± 500 Hz
- Dimensions:
- 29.5 mm diameter x 25 mm height
- Mounting Hole:
- 18 mm
- Lead Length:
- 100 mm
