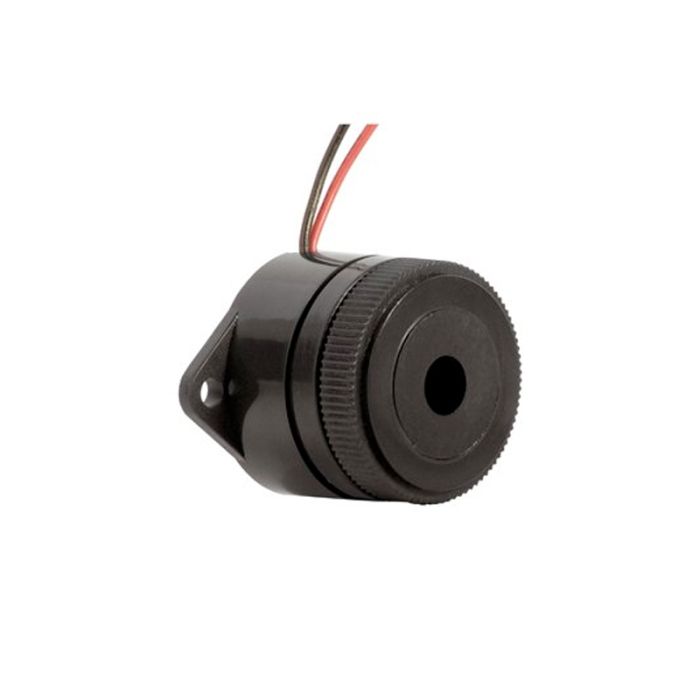

SONALERT Panel Mount Pulsating Piezo Buzzer - 12V DC 90dB
SONALERT is a panel-mount pulsating piezo buzzer for audible indication in low-voltage equipment panels and alerting circuits. It provides 90 dB sound output with a 1.5-28 V DC supply range and a 3200 Hz nominal pulsating tone.
Its panel-mount format, lead connection and compact body make it suitable for equipment builds that need a clear electronic warning tone without a large siren assembly. The 18 mm mounting hole and 100 mm lead length support straightforward panel installation.
Key Features
- Pulsating tone helps make alert conditions more noticeable than a steady indicator alone.
- Wide DC operating range supports use across common low-voltage control circuits.
- Panel-mount body gives a tidy front-panel or enclosure-mounted installation.
- Compact dimensions suit equipment where internal space is limited.
- Lead connection supports straightforward wiring into a buzzer or alarm circuit.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- SPL Output:
- 90 dB at 30 cm
- Supply Voltage:
- 1.5-28 V DC
- Current:
- 20 mA at 24 V DC
- Frequency:
- 3200 Hz +/- 500 Hz
- Mounting Hole:
- 18 mm
- Lead Length:
- 100 mm
- Dimensions:
- 29.5 mm diameter x 25 mm high
