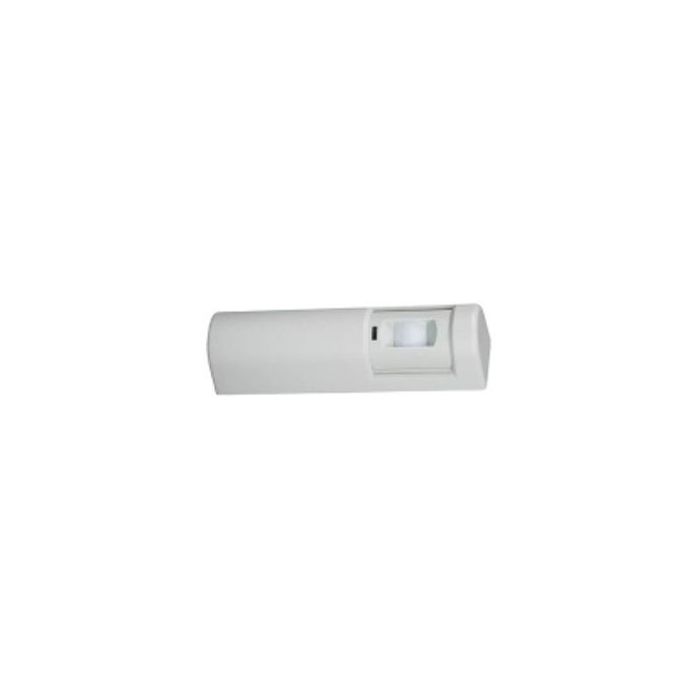

DS160I High Performance Request-to-Exit Detector with Sounder
The DS160I is a high-performance Bosch request-to-exit PIR detector for access control applications. It provides timers, door monitoring with sounder alert, Sequential Logic Input and pointable coverage for controlled doorway release.
The detector is suited to REX installations requiring more control than simple motion release. Adjustable latch time, fail-safe or fail-secure modes, keycard input and programmable door-monitor behaviour help align the sensor with the access control design.
Key Features
- Adds door-monitoring and sounder functions to request-to-exit sensing.
- Sequential Logic Input helps coordinate motion sensing with another access control signal.
- Pointable coverage allows the detection pattern to be aimed for the doorway.
- Adjustable latch timing supports different door release and traffic requirements.
- Selectable fail-safe or fail-secure behaviour helps match the lock control strategy.
- Catalogue Family:
- ALARM SENSOR
- Model:
- DS160I
- Product Type:
- Alarm Sensor
- Coverage:
- 2.4 x 3 m at 2.3 m mounting height
- Mounting Height Limit:
- Do not mount more than 4.6 m above the floor
- Voltage:
- 12 V AC/DC to 30 V AC/DC
- Current Draw:
- 8 mA standby; 39 mA at 12 V DC in alarm
- Alarm Output:
- Two Form C relay contacts rated 1 A at 30 V AC/DC
- Relay Latch Time:
- Adjustable from 0.5 to 64 seconds
- Dimensions:
- 4.5 x 17.1 x 4.4 cm
- Sounder:
- Adjustable up to 85 dB
