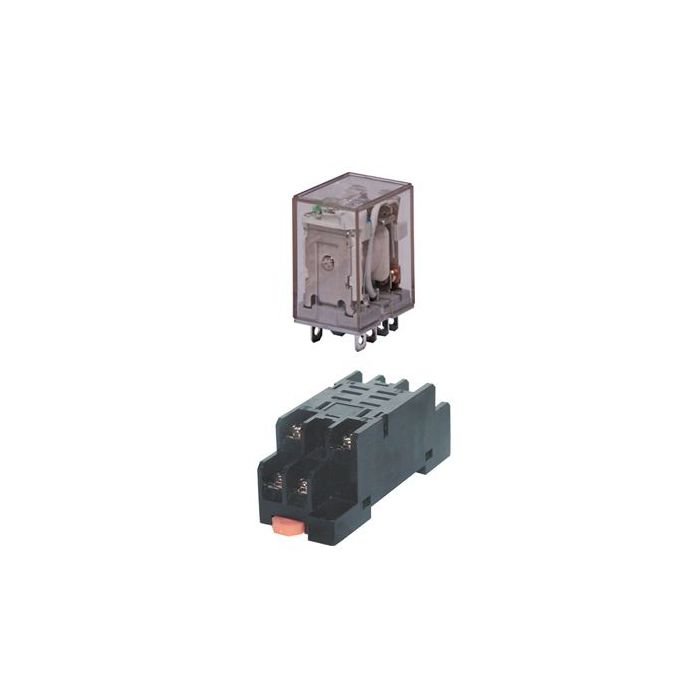

1212RELAY 12 VDC 10 A DIN Mount Relay and Base
The 1212RELAY is a 12 VDC DIN mount relay and base for access-control relay applications. It's a 10 A relay and notes an 80 mA draw on application at 12 V, with a maximum voltage of 300 V AC or 30 V DC and a maximum total current of 20 A.
The DIN-mount and base configuration helps provide a tidy mounting arrangement for low-voltage relay work. Listed insulation resistance, dielectric strength and operation-life figures also give installers useful specification detail when planning switching circuits and ongoing maintenance.
Key Features
- DIN-mount relay and base format supports neat placement in control installations.
- 12 VDC operation suits low-voltage switching applications.
- 80 mA draw on application helps with supply load planning.
- Published AC/DC voltage and total-current figures support clearer circuit specification.
- Electrical and mechanical life ratings provide useful maintenance-planning information.
- Catalogue Family:
- ACCESSORIES & OTHERS
- Product Type:
- Accessories & Others
- Product Voltage:
- 12 VDC
- Product Current:
- 10 A
- Draw On Application:
- 80 mA at 12 V
- Maximum Voltage:
- 300 V AC, 30 V DC
- Maximum Total Current:
- 20 A
- Maximum VA / Watts:
- 280 VA / 280 W
- Contact Material:
- Silver Cadmium Oxide
- Coil Resistance:
- 160 Ω
- Maximum Coil Power:
- 900 mW
- Insulation Resistance:
- >1000 MΩ @ 500 V DC
- Dielectric Strength:
- 1000 V AC between open contacts; 1500 V AC between coil and contact
- Electrical Life:
- 100,000 operations
- Mechanical Life:
- 20 million operations
