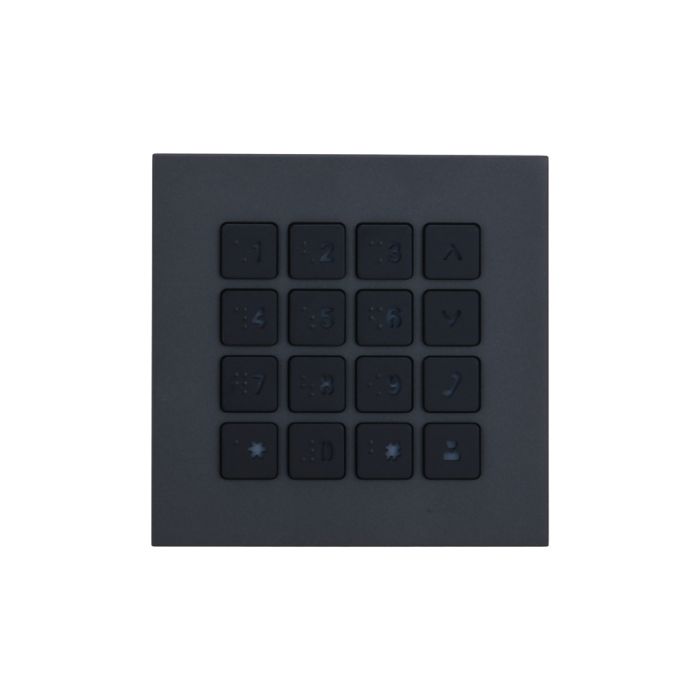

VTO4202FB-MK-BLACK Keyboard Module - Black
The VTO4202FB-MK-BLACK is a black keyboard module for the Dahua VTO420XFB-X modular door station series. It aligns with the DHI-VTO4202FB-MK module design, using aluminium alloy casing, 5 VDC module power, flush or surface mounting and a 100 mm x 100 mm x 31 mm body.
It is intended to add keypad input within compatible modular apartment or villa door station builds. IP65 and IK07 protection when installed with silicone sealant, a -30 °C to +60 °C operating temperature range and low power consumption support outdoor module planning.
Key Features
- Adds keypad input to compatible VTO420XFB-X modular door station systems.
- Supports either flush or surface-mounted modular station layouts.
- Uses black aluminium alloy construction for a coordinated module finish.
- Keeps module power simple through 5 VDC from other modules.
- Supports outdoor module planning with IP65 and IK07 protection ratings.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTO4202FB-MK
- Product Type:
- Intercom
- Casing Material:
- Aluminium alloy
- Appearance Colour:
- Black
- Power Supply:
- 5 VDC provided by other modules
- Installation:
- Flush mount; surface mount
- Dimensions:
- 100 mm x 100 mm x 31 mm
- Protection:
- IK07; IP65; silicone sealant is needed for installation
- Operating Temperature:
- -30 °C to +60 °C
- Power Consumption:
- 0.5 W or less
- Gross Weight:
- 0.32 kg
