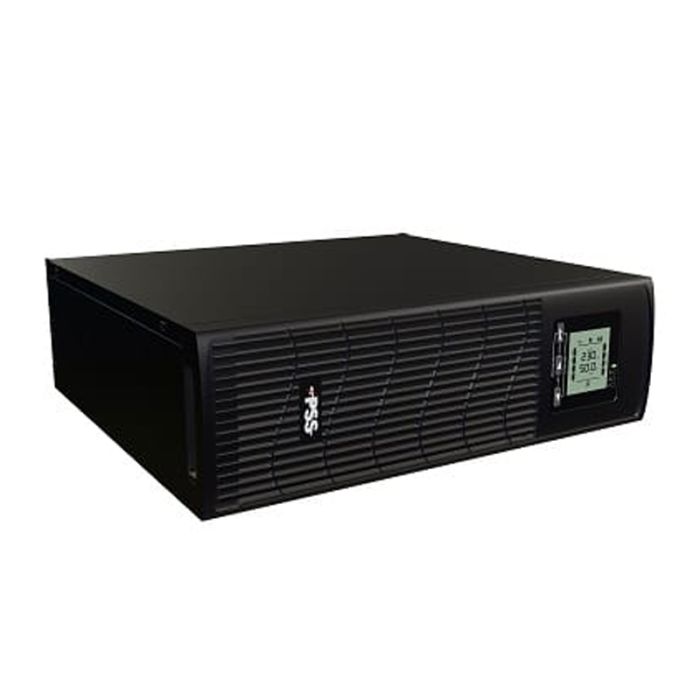

RD2000 RollUPS Single Phase UPS for Motor Loads - 1600W
The RD2000 is a RollUPS single phase UPS for motor loads up to 1hp / 745W, with a maximum output of 1600W. It provides pure sine wave output for the RD2000/RD3000 side of the range, sealed lead acid batteries, generator compatibility, intelligent battery management and USB Power Manager communication.
It suits roller door and motor-control installations that need longer standby time and higher load support than the RD1000. Rack-style dimensions, three Australian outlets and compatibility with the listed EBXL+2-2 extra battery module support more demanding installations.
Key Features
- Supports higher motor-load backup than the entry RollUPS model.
- Provides pure sine wave output for the RD2000 configuration.
- Helps plan door standby time with model-specific runtime guidance.
- Offers expansion support through the listed EBXL+2-2 battery module.
- Keeps motor UPS protection organised in a rack-style enclosure format.
- Catalogue Family:
- UPS
- Recommended Motor Capacity:
- Motors to 1hp / 745W
- Maximum Output:
- 1600W
- Input Voltage:
- 230V +/- 25%
- Input Cable:
- Aus 10A
- Battery Configuration:
- 3 x 12V 9Ah
- Outlets:
- 3 Australian outlets
- Dimensions (H X W X D):
- 132 x 440 x 410mm
- Weight:
- 22kg
- Standby Time:
- 85 minutes
- Product Type:
- UPS
