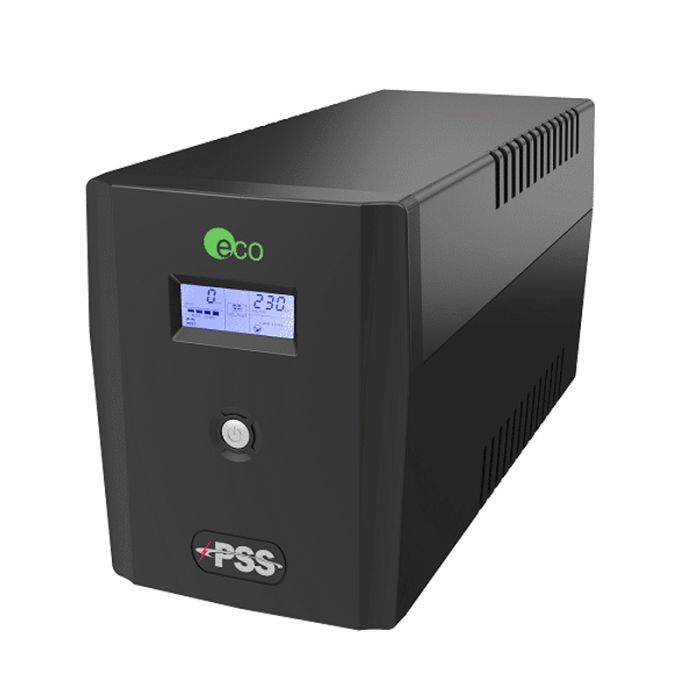

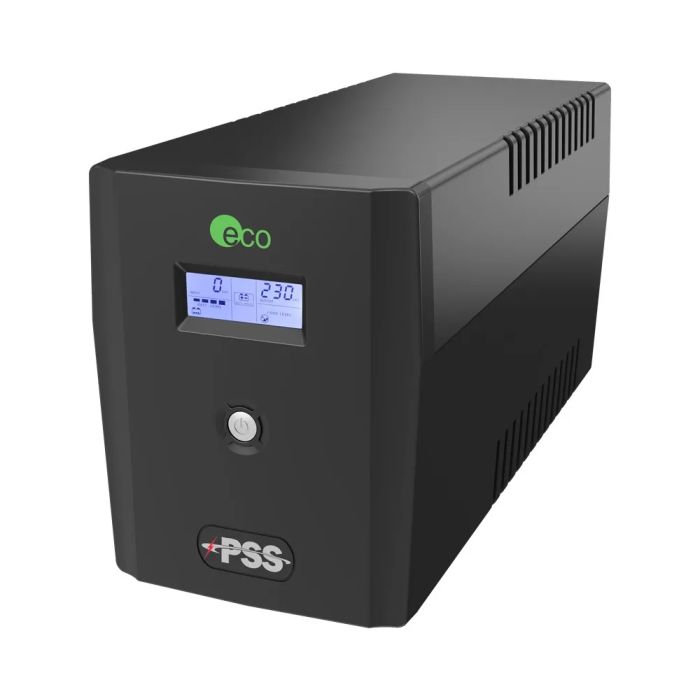

ECO2200L Eco Series Battery Backup UPS - 2200VA 1320W
The ECO2200L is the 2200VA / 1320W model in the Eco Series UPS range, with LCD display, RS232 and USB communication. It delivers battery backup, surge protection and automatic restart support for connected equipment that needs a larger line-interactive backup unit.
It suits larger CCTV, point of sale, computer and communications installations where the lower Eco Series capacities are not enough. Four UPS output sockets and model-specific runtime data make it useful for multi-device backup planning.
Key Features
- Provides the highest listed Eco Series capacity in this set.
- Supports multiple protected devices through four UPS output sockets.
- Offers RS232 and USB communication for sites needing monitoring options.
- Helps size backup power for larger CCTV and network loads.
- Keeps battery backup, AVR and surge protection in one compact UPS unit.
- Catalogue Family:
- UPS
- Capacity:
- 2200VA / 1320W
- Display:
- LCD
- UPS Output Sockets:
- 4 x AS/NZS 3112 Type I 10A
- Battery Configuration:
- 2 x 12V 9Ah
- Charge Current:
- 2A max
- Communication:
- RS232 and USB
- Software Supplied:
- Yes
- Dimensions (H X W X D):
- 198 x 158 x 380mm
- Weight:
- 11.1kg
- Input Voltage:
- 230Vac
- AVR Voltage Range:
- 162-290Vac
- Waveform:
- Modified/simulated sine wave
- Transfer Time:
- Typical 2-6ms
- Surge Protection:
- 125 Joules / 4500A
- Operating Temperature:
- 0-40 deg C
- Product Type:
- UPS
