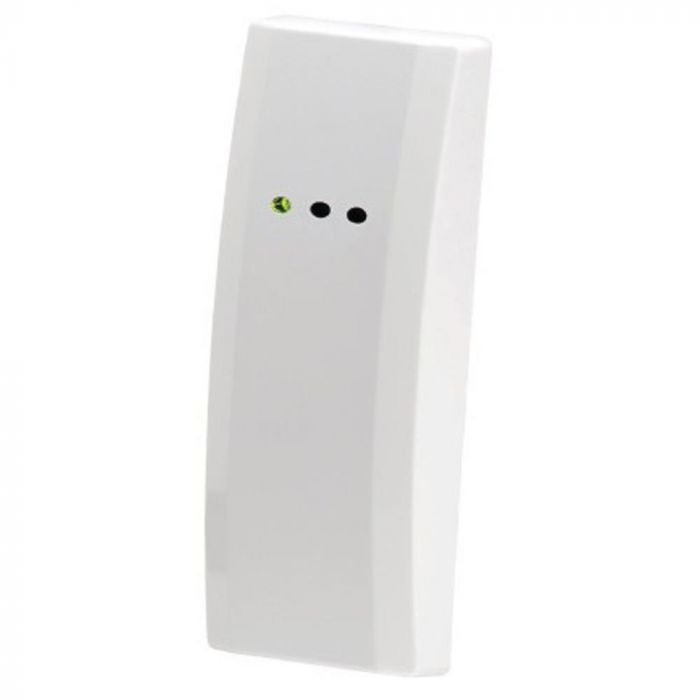

PR116B External Smart Card LAN Reader - White
The PR116B is a white external Smart Card LAN Reader designed for alarm and access control operation with selected Bosch Solution security control panels. It uses encrypted two-way authentication and connects to the control panel through the RS485 encrypted LAN.
The reader features a UV-stabilised ASA plastic enclosure with an IP66 weather-resistant rating for outdoor installation. Red, green and blue indicators display area and door-lock status, while the integrated egress input and lock output support door-access control applications.
Key Features
- White external Smart Card LAN Reader for alarm and access control operation
- Encrypted two-way authentication transmission format
- RS485 encrypted LAN connection
- UV-stabilised ASA plastic enclosure
- Vandal-resistant and weather-resistant IP66 construction
- Red and green indicators for area status
- Blue indicator for door-lock status
- Integrated egress input and protected lock output
- Compatible with selected Bosch Solution security control panels
- Catalogue Family:
- LOCKING
- Product Type:
- Locking
- Variant:
- PR116B - White
- Enclosure Material:
- UV-stabilised ASA plastic
- Ingress Protection:
- IP66
- Credential Format:
- Smart Card (MiFare), 40-bit proprietary, 10.3 MHz
- Module Connection:
- RS485 encrypted LAN
- Operating Voltage:
- 10.0 V DC to 14.5 V DC at 100 mA maximum
- Lock Output:
- Protected open-collector transistor output, 500 mA
- Egress Input:
- Low to trigger; can be disabled through software control
- Dimensions:
- 44 mm (W) x 21 mm (D) x 114 mm (H)
- Operating Environment:
- -30degC to 55degC; 5% to 85% RH at 30degC, non-condensing
- Mounting:
- Sturdy vertical wall using fixtures appropriate for the wall construction
