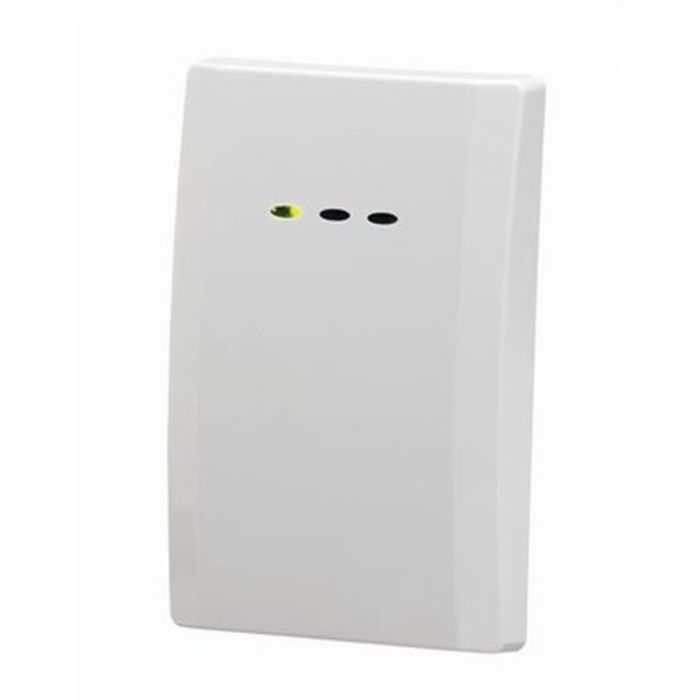

PR114B Bosch White Smart Card LAN Reader - IP66 Keypad Based
The PR114B is a Bosch white Smart Card LAN Reader designed for selected Solution security control panels. It uses an encrypted two-way authentication transmission format and connects to the control panel via the RS485 encrypted LAN, occupying a standard keypad position in the panel configuration.
Built from UV stabilised ASA plastic with IP66 weather resistance, the PR114B is suited to external alarm and access control installations where a reader may be exposed to outdoor conditions. Red, green and blue indicators provide area and door lock status feedback, while the egress input and lock output support door access control when configured through the panel.
Key Features
- Supports alarm area and door access control on selected Bosch Solution panels
- Uses encrypted LAN communication to integrate as a standard keypad-position device
- Provides clear local feedback with red, green and blue status indicators
- Weather-resistant IP66 construction supports suitable outdoor reader installations
- Helps simplify supported access setups with onboard egress input and lock output functions
- Catalogue Family:
- LOCKING
- Model:
- PR114B
- Product Type:
- Locking
- Colour:
- White
- Material:
- Plastic
- Weather Resistance:
- IP66
- Credential Format:
- Smart Card (MiFare) 40bit Proprietary, 10.3 MHz
- Transmission Format:
- Encrypted two-way authentication
- Panel Connection:
- RS485 encrypted LAN
- Panel Configuration:
- Occupies a standard keypad position
- Supported Panels:
- Solution 16i v2.19, Solution 144 v2.00 and Solution 6000 v2.12
- Operating Voltage:
- 10.0 VDC - 14.5 VDC @ 100 mA max.
- LAN Length:
- 500 m max. with multi-strand security cable; 1200 m max. with 2-pair twisted shielded data cable (Belden 8723)
- Lock Output:
- Protected open collector transistor output, 500 mA
- Egress Input:
- Low to trigger; can be disabled via software control
- Dimensions:
- 44 mm (W) x 21 mm (D) x 114 mm (H)
- Operating Environment:
- -30°C to +55°C; RH 5% to 85% at 30°C non-condensing
- Indicators:
- Red, green and blue indicators for area and/or door lock status
- Fixing Method:
- Mount on a sturdy vertical wall using fixtures appropriate for the wall construction type
- Warranty:
- 3 years from date of manufacture, return to base
