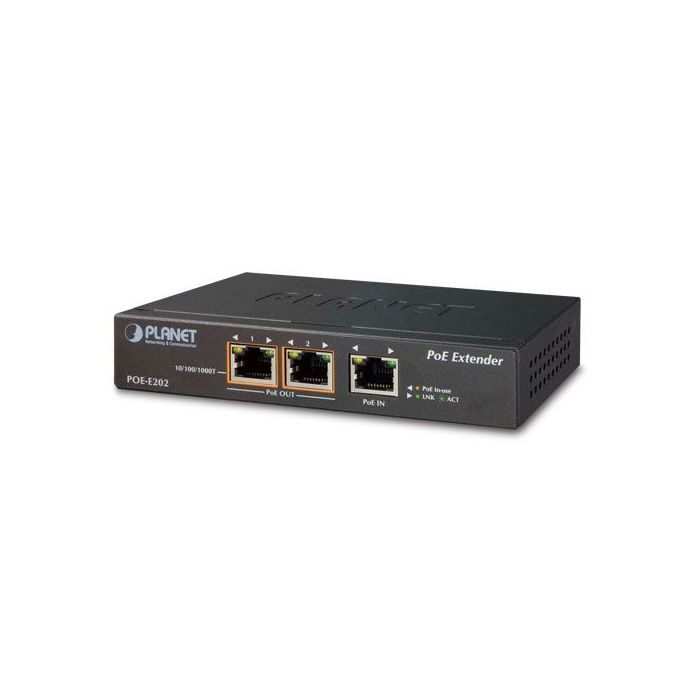

POE-E202 PLANET 1-Port 802.3at PoE+ to 2-Port Gigabit PoE Extender
The POE-E202 is a PLANET Gigabit PoE extender that converts one IEEE 802.3at PoE+ input into two IEEE 802.3af/at Gigabit PoE output ports. It supports 10/100/1000Mbps Ethernet data transmission, a metal enclosure, and wall-mountable installation.
The extender is designed for Gigabit PoE network applications requiring two PoE output ports from a single PoE+ input. PoE output capacity varies according to the input power source and cable distance.
Key Features
- Splits one PoE+ input into two Gigabit PoE output ports for nearby devices
- Gigabit switching fabric supports data forwarding for both extender outputs
- Metal wall-mountable enclosure supports practical deployment near devices
- LED indicators help diagnose PoE-in-use and link activity at each port
- Catalogue Family:
- SPLITTERS & EXTENDERS
- Product Type:
- Splitters & Extenders
- PoE Input:
- 1 x 10/100/1000Base-T 802.3at PoE+
- PoE Outputs:
- 2 x 10/100/1000Base-T 802.3af/at
- Data Rate:
- 10/100/1000 Mbps
- Switch Fabric:
- 6 Gbps
- Jumbo Frame:
- 10 KB
- Power Requirements:
- IEEE 802.3at compliant with voltage within 52 to 56 V DC
- Dimensions:
- 140 x 77 x 28 mm
- Weight:
- 258 g
- Operating Temperature:
- 0 to 50 degrees C
