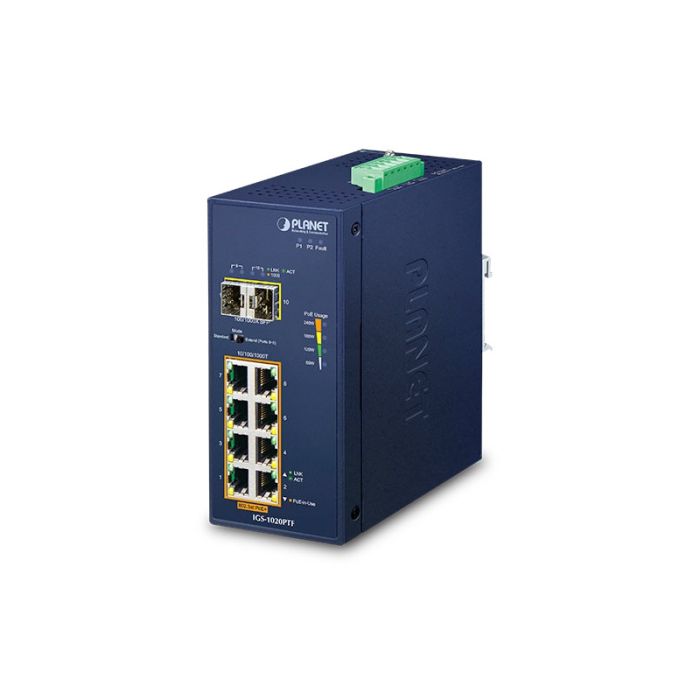

IGS-1020PTF PLANET Industrial 8-Port PoE+ Switch - 2 SFP Ports
The IGS-1020PTF is an industrial unmanaged Gigabit Ethernet PoE+ switch with eight 10/100/1000BASE-T RJ45 ports and two 100/1000BASE-X SFP slots. Its mapped PLANET IEEE 802.3af/at PoE+ injector support on ports 1 to 8, a 240 W PoE budget, and a rugged IP30 metal enclosure for demanding installations.
Designed for DIN-rail, wall, or side-wall mounting, it supports surveillance, wireless, and automation networks that need local PoE power plus fibre uplink flexibility. The wide -40 to 75 degrees C operating range and redundant 48-54 V DC input help it fit harsher industrial cabinets and remote security locations.
Key Features
- Combines PoE+ edge power and fibre uplinks in one industrial switch body.
- Supports cleaner remote device deployment by reducing separate power runs for cameras or access points.
- Offers hardened installation options for cabinets, enclosures, and plant environments.
- Extend mode gives installers a supported way to reach selected longer copper runs when speed trade-offs are acceptable.
- Front-panel indicators help site teams check power, PoE use, and link status quickly.
- Total Port No:
- 8Port
- Total PoE Budget:
- 240W
- Operating Temperature:
- '-40 to +75
- Product Type:
- Network Switch
