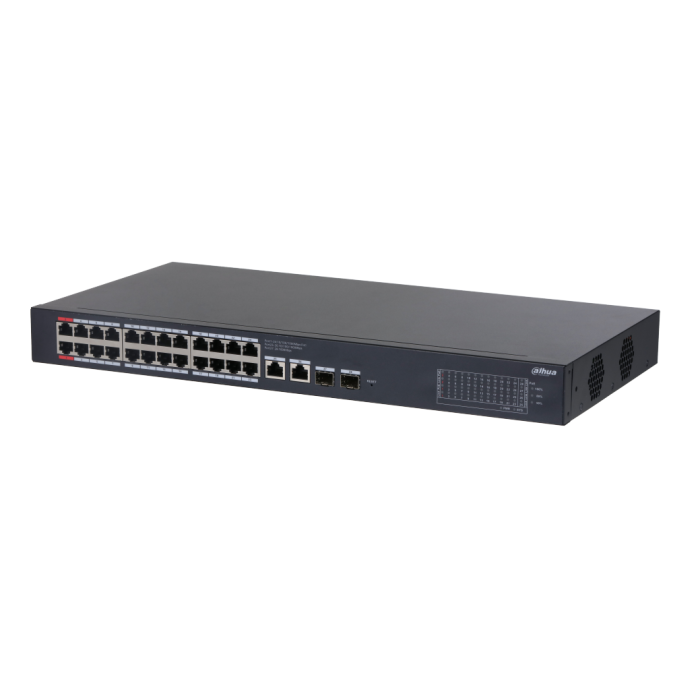

CS4228-24GT-375-V2 28-port Cloud Managed Desktop Gigabit Switch with 24-port PoE
The CS4228-24GT-375-V2 is a Dahua 28-port cloud managed desktop gigabit switch with 24 gigabit PoE ports, 2 gigabit RJ-45 uplinks and 2 SFP gigabit uplinks. It provides Layer 2 management, 56 Gbps switching capacity and a 375 W total PoE budget.
It supports local web and cloud management through Dahua management tooling, with PoE Watchdog, loop protection, LLDP topology support and long-distance PoE modes. Its built-in AC power supply, rack or desktop mounting and full metal casing suit larger CCTV and IT access networks that need managed PoE power distribution with fibre uplink options.
Key Features
- Large PoE port count supports higher-density security network cabinets
- 375 W total budget helps power multiple cameras and edge devices
- Fibre uplinks support longer network backhaul between infrastructure areas
- Managed Layer 2 functions help control loops, VLANs and storm behaviour
- Rack-mountable sheet-metal design suits professional switch-room layouts
- Catalogue Family:
- NETWORK SWITCH
- Model:
- DH-CS4228-24GT-375-V2
- Ports:
- 24 x RJ-45 gigabit PoE; 2 x RJ-45 gigabit uplink; 2 x SFP gigabit uplink
- Switching Capacity:
- 56 Gbps
- PoE Power:
- Ports 1-2 ≤90 W; ports 3-24 ≤30 W; total ≤375 W
- Power Supply:
- Built-in 100-240 VAC, 47-63 Hz, max 7 A
- Casing Material:
- Sheet metal
- Installation:
- Desktop mount; rack mount
- Dimensions:
- 440 x 220 x 44 mm
- Operating Temperature:
- -10°C to +55°C
- Operating Humidity:
- 5-95% RH, non-condensing
- Product Type:
- Network Switch
