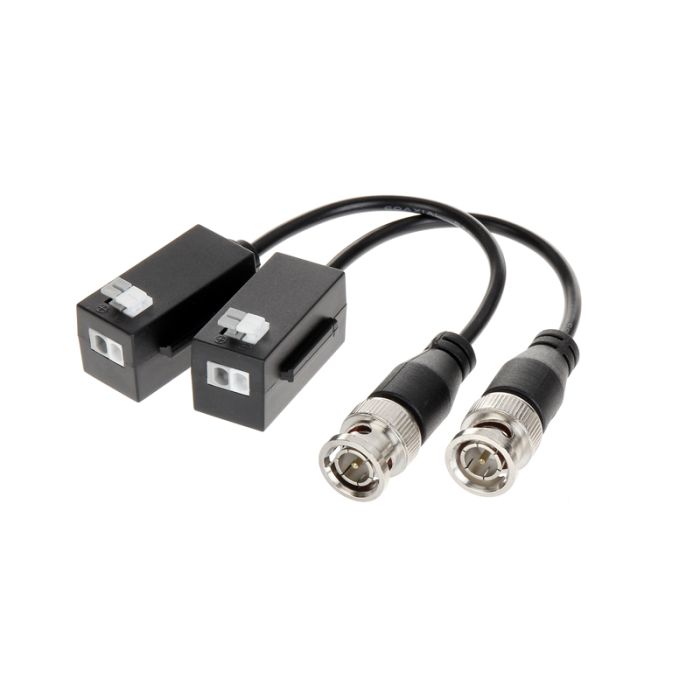

PFM800-4K Dahua 1 Channel Passive Video Balun - 4K
The PFM800-4K is a Dahua one-channel passive video balun for real-time transmission over UTP CAT5E or CAT6 cable. It supports HDCVI, TVI, AHD and CVBS formats with 720p, 1080p, 4 MP, 5 MP and 4K resolution support.
It is suited to CCTV analogue video transmission where passive operation and compact BNC-to-UTP connectivity are required. The device uses a BNC male connector and RJ45 connection with no power supply required.
Key Features
- Passive design eliminates the need for a separate power supply.
- Supports HDCVI, HDTVI, AHD and CVBS video transmission.
- UTP CAT5e/6 compatibility suits structured cabling installations.
- Built-in protection features support reliable operation in demanding environments.
- Compact single-channel design allows installation at camera or recorder locations.
- Catalogue Family:
- POWER SUPPLY
- Model:
- DH-PFM800-4K
- Product Type:
- Power Supply
- Transmission Signal:
- 1 channel
- Cable Type:
- UTP CAT5E/6 copper
- Compatible Format:
- HDCVI; TVI; AHD; CVBS
- Resolution:
- 720p; 1080p; 4 MP; 5 MP; 4K
- Connector:
- BNC male
- Connection Way:
- RJ45
- Weight:
- 40 g per pair
- Dimensions:
- 173.8 mm x 19.5 mm x 21 mm
- Shell:
- ABS
- Colour:
- Black
