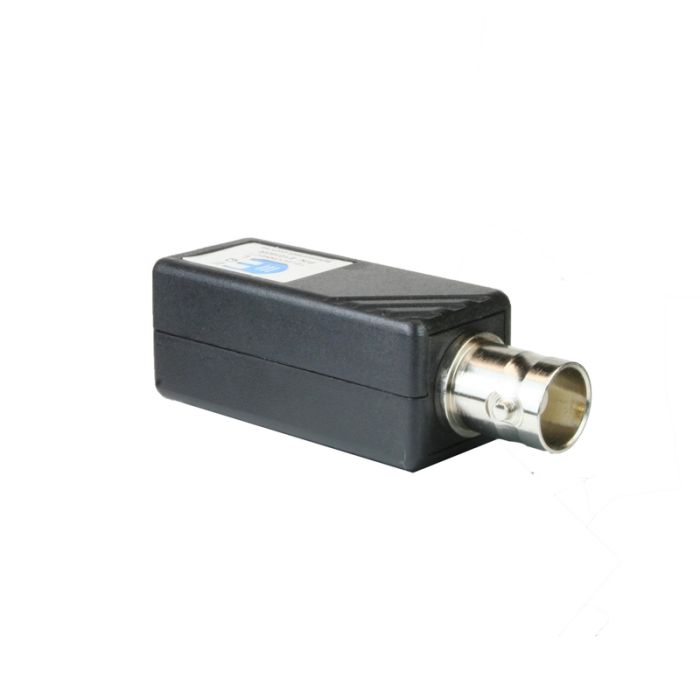

E10185R BNC Female Balun Slim Case with RJ45 Jack
The E10185R is a passive video balun for CCTV security systems with BNC female and RJ45 connectivity. It interfaces 75 ohm coaxial cable with 100 ohm twisted-pair cabling and operates without an external power supply.
The balun is designed for transmitting CCTV video signals over Cat 5e or compatible twisted-pair cabling. It features passive operation, a fire-retardant ABS housing, and supports the specified transmission distances for compatible video installations.
Key Features
- Passive balun design avoids the need for a local power supply
- Coaxial-to-RJ45 impedance matching supports CCTV cabling conversion
- Cat 5e distance ratings support longer video runs where conditions suit
- Slim case format helps fit into space-limited camera or rack locations
- Compatibility list supports use with selected E10180 and E10185 series devices
- Catalogue Family:
- CABAC
- Product Type:
- Cabac
- Bandwidth:
- DC to 8 MHz
- Insertion Loss:
- Less than 2 dB to 8 MHz
- Impedance:
- 75 ohm coaxial, 100 ohm RJ45
- Maximum Signal Voltage:
- 1.1 Vp-p
- Return Loss:
- Greater than 15 dB to 8 MHz
- Common Mode Rejection:
- Greater than 40 dB at 8 MHz
- Casing:
- Fire retardant plastic ABS UL 94V-0
- Maximum Distance:
- Colour up to 400 m Cat 5e; black and white up to 600 m Cat 5e
- Operating Temperature:
- 0 to 55 degrees C
