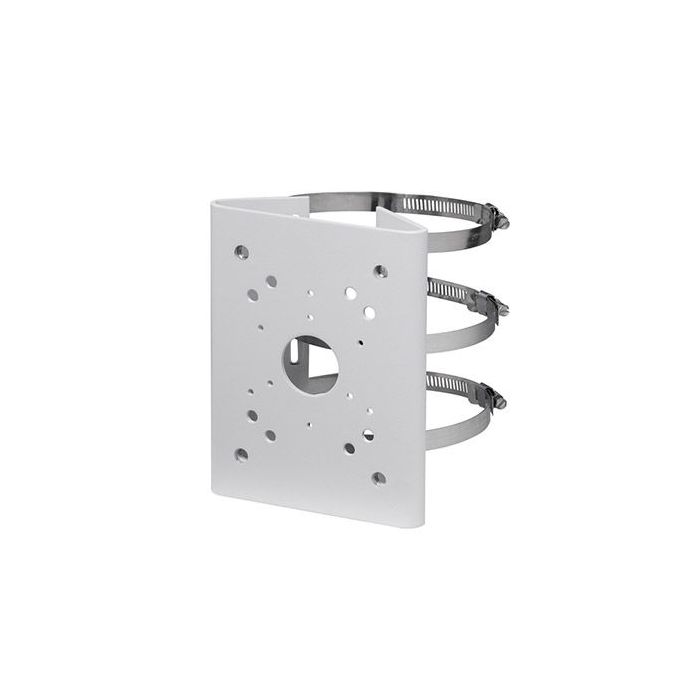

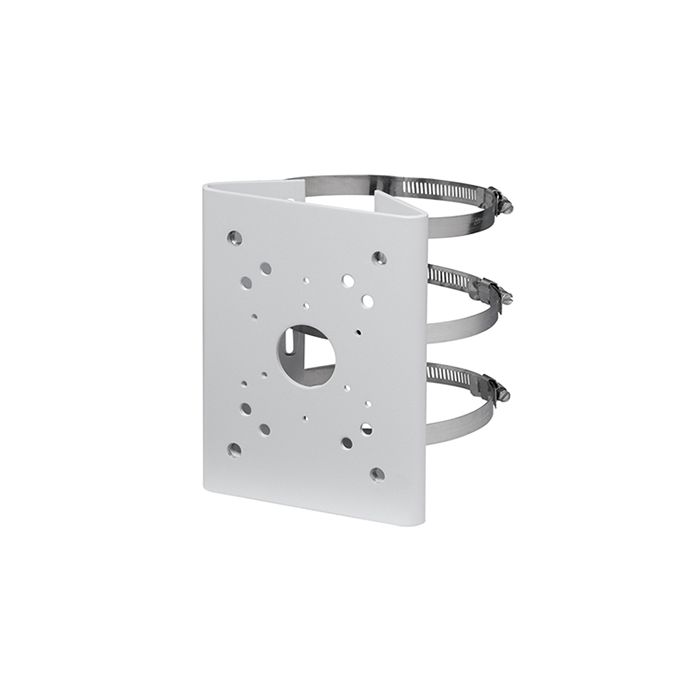

PFA150 Dahua DH-PFA150 Pole Mount Bracket - 80 mm To 150 mm Poles
The PFA150 is a Dahua DH-PFA150 pole mount bracket built from SECC with SUS304 hoop material. It is designed for poles from 80 mm to 150 mm in diameter and supports a 7.0 kg load-bearing capacity.
It suits camera mounting applications where a bracket must be fixed to a pole rather than a wall or corner surface. It is compatible with Dahua junction boxes, wall mount brackets, power boxes, universal joints and other compatible mounting accessories.
Key Features
- Pole-mount bracket supports CCTV installation on round support structures.
- Compatible with poles from 80 mm to 150 mm in diameter.
- SECC and SUS304 construction provides a durable mounting solution.
- Supports camera assemblies up to 7.0 kg.
- Includes hoop and screw hardware for installation.
- Catalogue Family:
- CAMERA BRACKET
- Model:
- DH-PFA150
- Product Type:
- Camera Bracket
- Material:
- SECC; SUS304 hoop
- Pole Diameter:
- 80 mm to 150 mm
- Dimensions:
- 130.4 mm x 45.0 mm x 170.0 mm
- Load Bearing:
- 7.0 kg
- Weight:
- 1.09 kg
- Colour:
- White
- Installation:
- Pole mount
- Operating Temperature:
- -40 deg C to +60 deg C
- Operating Humidity:
- <90% RH
