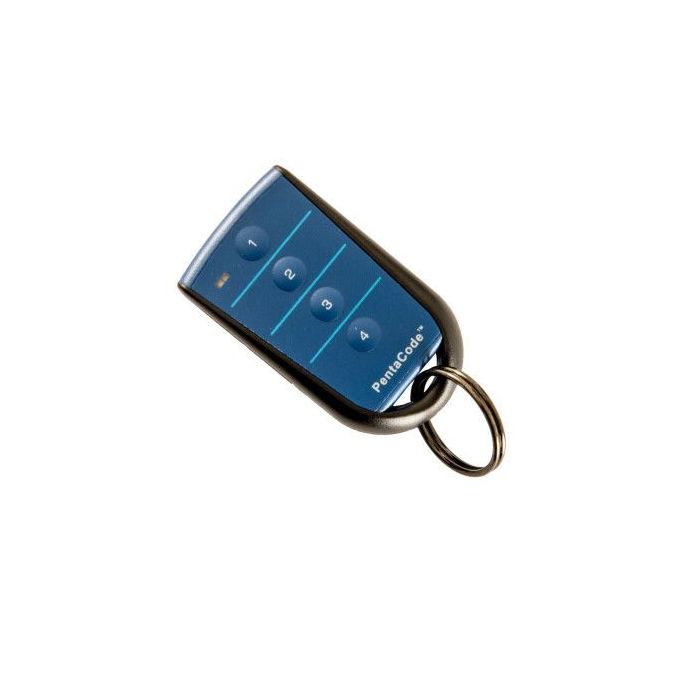

PCK43304 433 MHz Penta Keyring Remote - 4 Button
The PCK43304 is the 4-button version of Elsema's PCK series 433 MHz Penta keyring remote with frequency hopping. It uses a 12 V battery, transmits across 433.100 to 434.700 MHz, and supports either 12-way dipswitch coding or encrypted PentaCODE operation.
Designed for keyless access control, home automation, wireless security, lighting and automotive control, the remote works with compatible Penta receivers in the supplied range. Frequency hopping spread spectrum transmits on five different frequencies, while the compact keyring format suits everyday user operation.
Key Features
- Four-button layout supports multiple receiver channels or controlled functions from one remote.
- Dual coding gives installers the choice of simple dipswitch matching or encrypted PentaCODE setup.
- Frequency hopping operation transmits across five frequencies for stronger resistance to interference.
- Compact keyring format is practical for everyday gate, door and automation users.
- AS/NZS 4268, CE and FCC references support specification in regulated environments.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Product:
- 4-button keyring transmitter
- Operating Voltage:
- 12 V battery
- Standby Current:
- 1.8 uA
- Current Consumption:
- 18 mA typical at 12 V DC during transmission
- Battery Life:
- 1.5 years with average use
- Frequency Band:
- 433.100 to 434.700 MHz
- Operating Range:
- Up to 200 metres depending on building structure and receiver antenna
- Operating Temperature:
- -5 to 50 deg C
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Weight:
- 30 g
- Compliance:
- AS/NZS 4268 CE and FCC certified
- Product Type:
- Transmitters & Receivers
