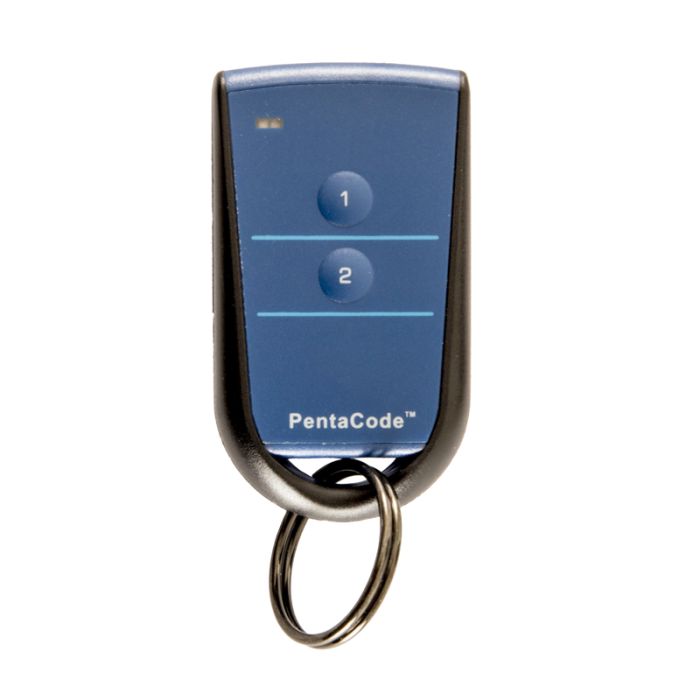

PCK43302 Elsema PentaCODE 433 MHz Keyring Remote - 2 Button
The PCK43302 is the 2 button model in Elsema's PentaCODE 433 MHz keyring remote range. The PCK43302 is a two-button keyring transmitter with dual coding using a 12-way DIP switch or encrypted code and frequency hopping spread spectrum (FHSS) transmission across five frequencies.
It is suitable for automatic gates, doors, home automation, wireless security, and lighting control. It is compatible with PCR Penta Series receivers.
Key Features
- Two-button keyring format supports compact control of paired functions.
- Dual coding gives installers the choice of dip-switch setup or encrypted coding.
- FHSS operation across five frequencies helps reduce interference risk.
- PCR Penta receiver compatibility keeps integration within the receiver family.
- Small 30 g remote is practical for everyday gate and access-control users.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Product Family:
- PentaCODE PCK series keyring remote
- Buttons:
- 2
- Operating Voltage:
- 12 V battery
- Frequency Band:
- 433.100 to 434.700 MHz
- Operating Range:
- Up to 200 m depending on building structure and receiver antenna
- Operating Temperature:
- -5 to 50 degrees C
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Weight:
- 30 g
- Product Type:
- Transmitters & Receivers
