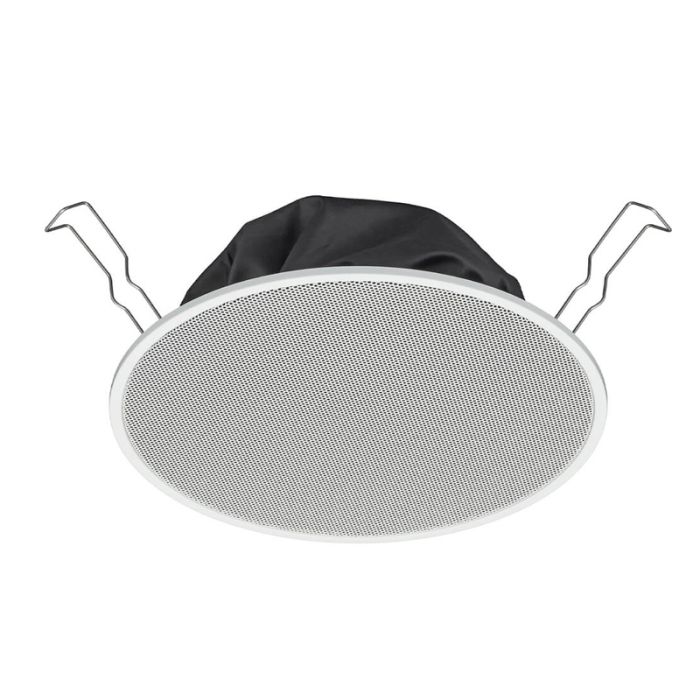

PC2360 TOA PC-2360 Ceiling Speaker - 6 W 100 V
The TOA PC-2360 is a ceiling speaker for announcements and background music systems. The speaker provides a 16 cm cone-type speaker, 6 W high-impedance rated input, 94 dB SPL sensitivity and push-wire bridging terminal connection.
Designed for ceiling-mounted PA and background music systems. Features selectable 100 V and 70 V tappings, a push-wire bridging terminal and a white finish.
Key Features
- Ceiling-mount format supports discreet PA and BGM coverage.
- 16 cm cone-type driver supports fuller ceiling speaker reproduction.
- Selectable 100 V and 70 V tappings assist amplifier load planning.
- Push-wire bridging terminal supports practical loop-through wiring.
- White finish helps blend into typical ceiling environments.
- Catalogue Family:
- SPEAKERS
- Product Type:
- Speakers
- Rated Input:
- 6 W high impedance
- Tappings:
- 6/3/1.5/0.8 W at 100 V; 3/1.5/0.8/0.4 W at 70 V
- Sensitivity:
- 94 dB SPL (1 W, 1 m)
- Frequency Response:
- 60 Hz to 20 kHz
- Speaker Component:
- 16 cm cone-type
- Connection:
- Push wire connection, bridging terminal
- Operating Temperature:
- -10 deg C to +50 deg C
- Finish:
- Traffic white, RAL 9016 or equivalent
- Weight:
- 560 g
