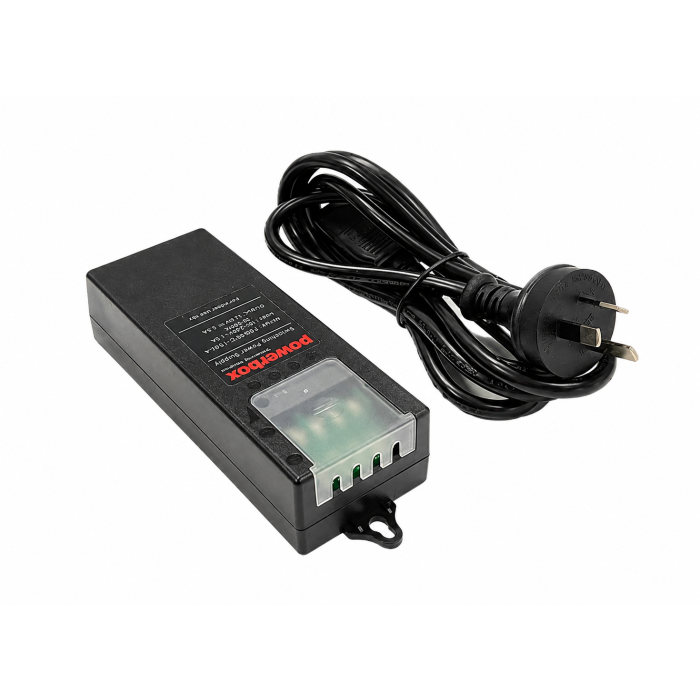

PBBSEC-1205-4 Powerbox 12V 5A AC/DC Power Supply - 4 Channel
The PBBSEC-1205-4 is a Powerbox 12 V 5 A AC/DC switching power supply with four parallel screw-terminal output channels. It accepts universal 100-240 V AC input and provides up to 60 W total output with an adjustable 10-14 V DC output range.
Built for security applications such as CCTV, alarms, access control and security peripherals, it is supplied in a wall-mountable polycarbonate enclosure with a removable output cover. Status indication, overload, short-circuit and over-temperature protection, and AS/NZS 62368.1 certification support practical residential and commercial security installations.
Key Features
- Four output channels help distribute 12 V DC power neatly across multiple security devices
- Adjustable output range allows voltage tuning to suit connected loads and cable-drop requirements
- Wall-mountable enclosure with covered outputs supports a tidy installer-ready power layout
- Status LED and automatic protection functions help simplify fault awareness and recovery
- Certified safety design supports use in residential and commercial security power installations
- Catalogue Family:
- POWER SUPPLY
- Input Voltage:
- 100-240 V AC (90-264 V AC)
- Input Current:
- 1.2 A max.
- Frequency:
- 50/60 Hz (47-63 Hz)
- Efficiency:
- ≥88%
- Nominal Output Voltage:
- 12 V DC
- Output Current:
- 5 A max. total across 4 output channels
- Output Power:
- 60 W max.
- Adjustment Range:
- 10-14 V DC
- Ripple and Noise:
- <200 mVp-p
- Protection:
- Overload/short circuit hiccup with auto reset; overtemperature shutdown with auto reset
- Isolation:
- Input-output 3000 V AC for 1 minute; input-ground 2000 V AC for 1 minute
- Safety Standard:
- AS/NZS 62368.1
- Enclosure:
- Polycarbonate, UL94 V-0, 5VB
- Case Size and Weight:
- 167 x 55 x 35 mm; 245 g typical
- Operating Environment:
- 0°C to 40°C full load; 5% to 90% RH non-condensing; indoor use only
- Product Type:
- Power Supply
