PBB2S-13-7-MK-II Powerbox 13.8 VDC DC UPS Battery Charger - 6 A

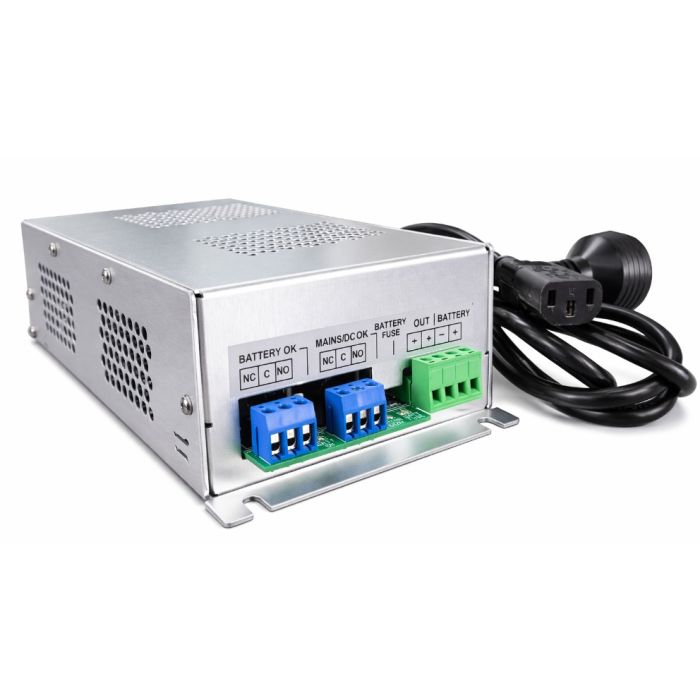

The PBB2S-13-7-MK-II is a Powerbox PBB2S MK II DC UPS and battery charger with 13.8 VDC output and 6.0 A output current. 0.5 A typical battery charging current limit, 13.8 VDC float battery voltage, IP20 protection index, lead-acid battery support, and Mains/DC OK and Battery OK alarm contacts.
It suits 12 V battery-backed supply applications where a higher load current is required in a compact DC UPS charger. The aluminium case, natural convection cooling, and built-in protections make it appropriate for controlled indoor security, access-control, and automation power cabinets.
Key Features
- Provides a higher-current 13.8 VDC DC UPS option in the PBB2S MK II family.
- Alarm contacts help integrate supply and battery status into monitored systems.
- IP20 indoor charger format suits protected equipment cabinet installations.
- Self-resetting battery fuse and electrical protections support service-friendly backup power.
- Natural convection cooling avoids fan maintenance in compact power setups.
- Catalogue Family:
- UPS
- Output Voltage:
- 13.8 VDC
- Output Current:
- 6.0 A
- Battery Voltage:
- 13.8 VDC float for 12 V battery
- Battery Charging Current Limit:
- 0.5 A typical
- Nominal Input Voltage:
- 115-240 Vac
- Case Size:
- 219 x 115 x 62 mm
- Weight:
- 670 g
- Protection Index:
- IP20
- Product Type:
- UPS
