PBB2S-13-3.5-MK-IIB Powerbox 13.8 VDC DC UPS Battery Charger Kit - 3.25 A

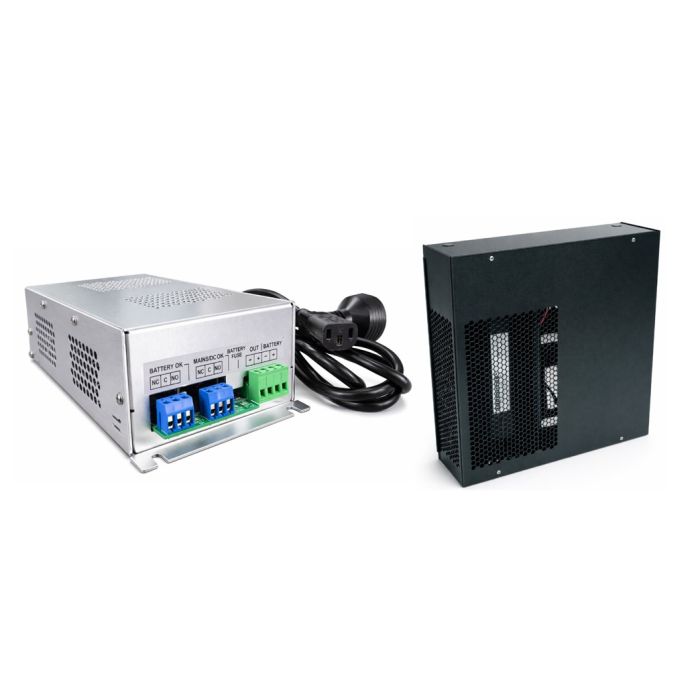

The PBB2S-13-3.5-MK-IIB is a Powerbox DC UPS battery charger kit comprising the PBB2S-13-3.5 MK II charger and the PBBSWMB security cabinet. The charger provides a 13.8 VDC output, 3.25 A output current, 0.25 A typical battery charging current limit, and Mains/DC OK and Battery OK alarm contacts.
The kit is designed for battery-backed DC power applications requiring a compact charger with a compatible wall-mount security cabinet. The cabinet supports PBB2S, PB256 and PB251A series battery chargers, and includes a tamper switch, mounting brackets, and support for 7 Ah to 17 Ah batteries.
Key Features
- Battery charger kit with compatible wall-mount security cabinet
- 13.8 VDC output with 3.25 A output current
- Mains/DC OK and Battery OK alarm contacts
- Compatible with PBB2S, PB256 and PB251A series battery chargers
- Supports 7 Ah to 17 Ah backup battery configurations
- Catalogue Family:
- UPS
- Charger Output Voltage:
- 13.8 VDC
- Charger Output Current:
- 3.25 A
- Battery Charging Current Limit:
- 0.25 A typical
- Charger Case Size:
- 219 x 115 x 62 mm
- Charger Weight:
- 600 g
- Cabinet Dimensions:
- 375 x 362 x 111.5 mm
- Cabinet Battery Support:
- 1 x 12 V 7 Ah, 12 Ah, 17 Ah or 2 x 12 V 7 Ah configurations
- Product Type:
- UPS
