PBB2S-13-7-MK-IIB Powerbox 13.8 VDC DC UPS Battery Charger Kit - 6 A

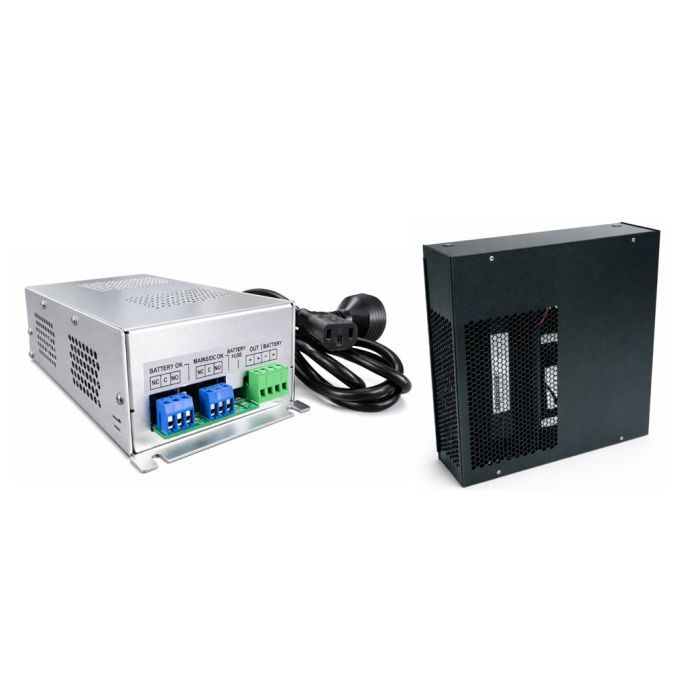

The PBB2S-13-7-MK-IIB is supplied as a kit based on the PBB2S-13-7 MK II DC UPS battery charger and the PBBSWMB wall-mount cabinet. The charger features 13.8 VDC output, 6.0 A output current, 0.5 A typical battery charging current limit, IP20 protection index, and Mains/DC OK and Battery OK alarm contacts.
The wall-mount cabinet includes a tamper switch and mounting brackets and supports one 12 V battery in 7 Ah, 12 Ah or 17 Ah capacity, or two 12 V 7 Ah batteries.
Key Features
- Combines a 6 A DC UPS charger platform with a compatible security cabinet.
- Supports cleaner battery-backed power assembly for access-control and security systems.
- Status contacts provide supply and battery condition monitoring.
- Cabinet battery options help installers tailor backup capacity to the site need.
- Catalogue Family:
- UPS
- Charger Output Voltage:
- 13.8 VDC
- Charger Output Current:
- 6.0 A
- Battery Charging Current Limit:
- 0.5 A typical
- Charger Case Size:
- 219 x 115 x 62 mm
- Charger Weight:
- 670 g
- Cabinet Dimensions:
- 375 x 362 x 111.5 mm
- Cabinet Battery Support:
- 1 x 12 V 7 Ah, 12 Ah, 17 Ah or 2 x 12 V 7 Ah configurations
- Product Type:
- UPS
