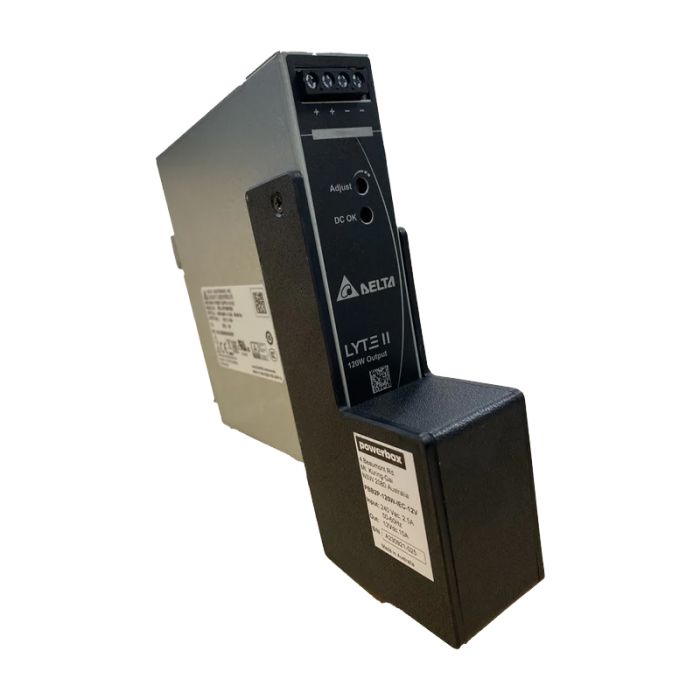

PBB2P-120W-IEC-12V Powerbox DIN Rail Power Supply with IEC Input - 12 V 10 A 120 W
The PBB2P-120W-IEC-12V is a Powerbox PBB2P Series AC/DC DIN rail power supply with an IEC input and a regulated 12 VDC, 10.0 A output. It provides up to 120 W output power and features a universal 90-264 VAC input range, an IEC input socket with a 2 m IEC power cable, and TS35 DIN rail mounting.
The power supply is designed to provide regulated DC power for industrial control, security, and automation equipment. It uses natural convection cooling, supports constant-current operation for reactive loads, and operates over a temperature range of -30 to +70 degrees C with a -40 degrees C cold start.
Key Features
- Provides a regulated 12 VDC, 10.0 A output for DIN rail-mounted equipment.
- IEC input socket with supplied 2 m IEC power cable simplifies AC power connection.
- Natural convection cooling enables fanless operation.
- Wide operating temperature range supports industrial installations.
- Constant-current operation supports inductive and capacitive load applications.
- Output Voltage Range:
- 12 VDC
- Input Voltage Range:
- 90-264Vac
- Product Type:
- Power Supply
