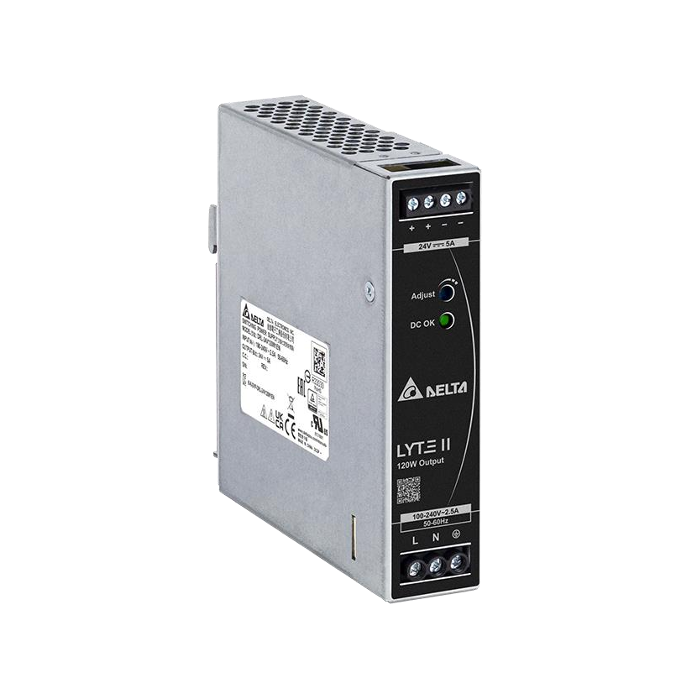

DRL-24V120W1EN Delta LYTE II DIN Rail Power Supply - 24 VDC 5 A 120 W
The DRL-24V120W1EN is a Delta LYTE II DIN rail power supply with a 24 VDC rated output, 5.0 A rated output current, and 120 W maximum output power. It features a universal 90-264 VAC input range, constant-current operation for reactive loads, and TS35 DIN rail mounting in accordance with EN 60715.
The power supply is designed to provide regulated 24 VDC power for industrial control, security, and automation equipment. It uses natural convection cooling, operates over a temperature range of -40 to +70 degrees C, and features a slim housing for space-efficient DIN rail installations.
Key Features
- Provides a regulated 24 VDC, 120 W power output for DIN rail-mounted equipment.
- Universal 90-264 VAC input supports operation across a wide range of AC power sources.
- Slim LYTE II housing helps maximise available DIN rail space.
- Natural convection cooling enables fanless operation.
- Constant-current operation supports inductive and capacitive load applications.
- Input Voltage Range:
- 90-264Vac
- Product Type:
- Power Supply
