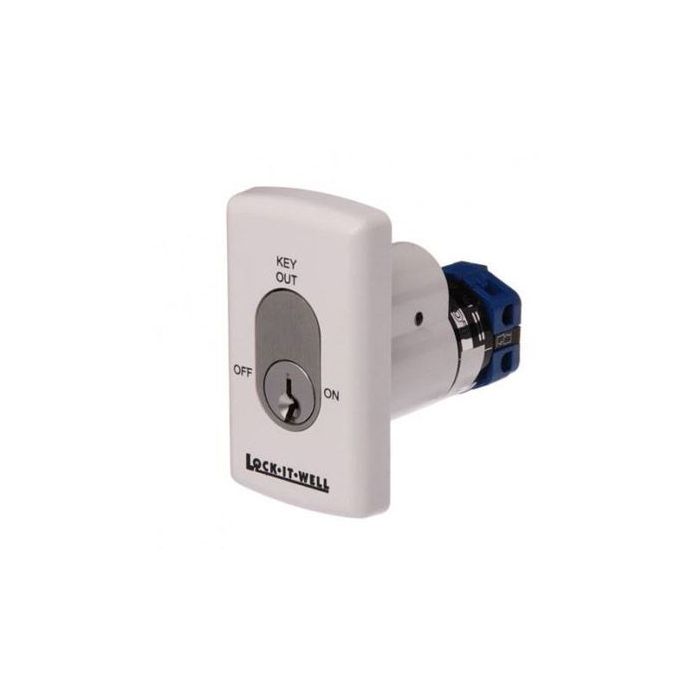

OVAL1 Oval Series Keyswitch - Lazy Cam 2 Contacts
The OVAL1 is an Oval Series keyswitch featuring lazy cam operation with 1 N/O and 1 N/C changeover contacts. It uses a standard oval lock cylinder, includes a 570 Series compatible cylinder and two keys, and is supplied on a 115 mm x 70 mm Clipsal 2000 Series mounting plate.
The keyswitch is suitable for internal access-control and switching applications requiring centre/off/on lazy cam operation. It features an electrically isolated cylinder and allows cylinder servicing without removing the switch assembly.
Key Features
- Lazy cam keyswitch with 1 N/O and 1 N/C changeover contacts.
- Uses a standard oval lock cylinder with a 570 Series compatible cylinder.
- Supplied with two keys and a 115 mm x 70 mm Clipsal 2000 Series mounting plate.
- Electrically isolated cylinder design.
- Cylinder can be serviced without removing the switch assembly.
- Catalogue Family:
- ALARM SWITCH
- Series:
- Oval Series
- Variant:
- OVAL 1
- Contacts:
- 1 N/O, 1 N/C changeover
- Cylinder:
- 570 Series compatible cylinder with two keys
- Mounting Plate:
- 115 mm x 70 mm Clipsal 2000 Series
- Action:
- Lazy cam
- Product Type:
- Alarm Switch
